Exciting progress made on several projects during our Saturday, March 23, 2024, workday.
Another Friday evening rain leads to great weather on Saturday as more work was done on the “Grandma Line”, water line extension, and the new retaining wall. The crew took a divide and conquer approach to projects starting finishing the new retaining wall then moving to the water line extension project. We had a special visitor “Bob Jr” who helped bring dirt in for the “Grandma Line” area.

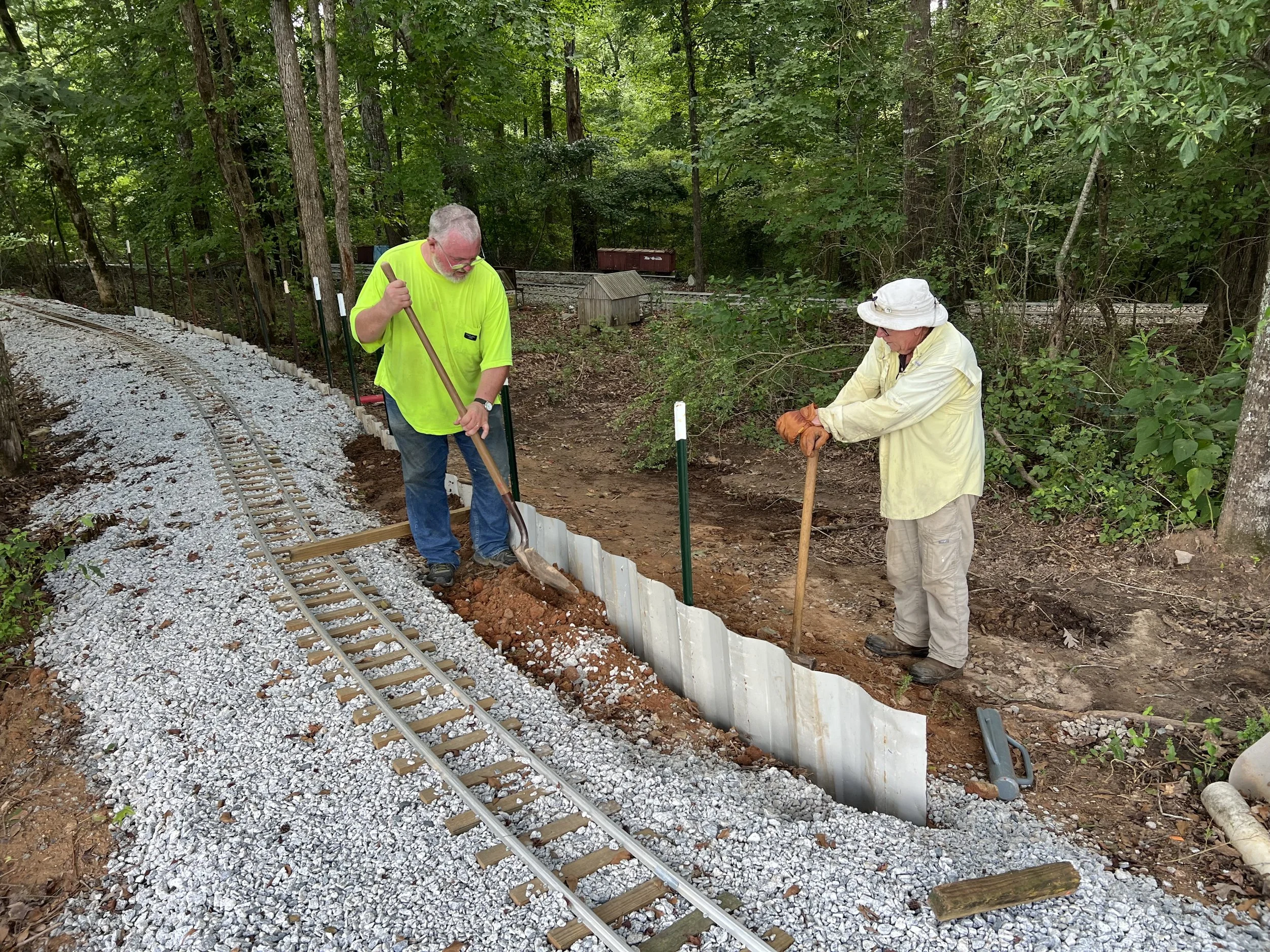

Another Friday evening rain leads to great weather on Saturday as more work was done on the “Grandma Line”, water line extension, and the new retaining wall. The crew took a divide and conquer approach to projects starting with Wes and Scott finishing the new retaining wall then moving to the water line extension project with Robby and John.

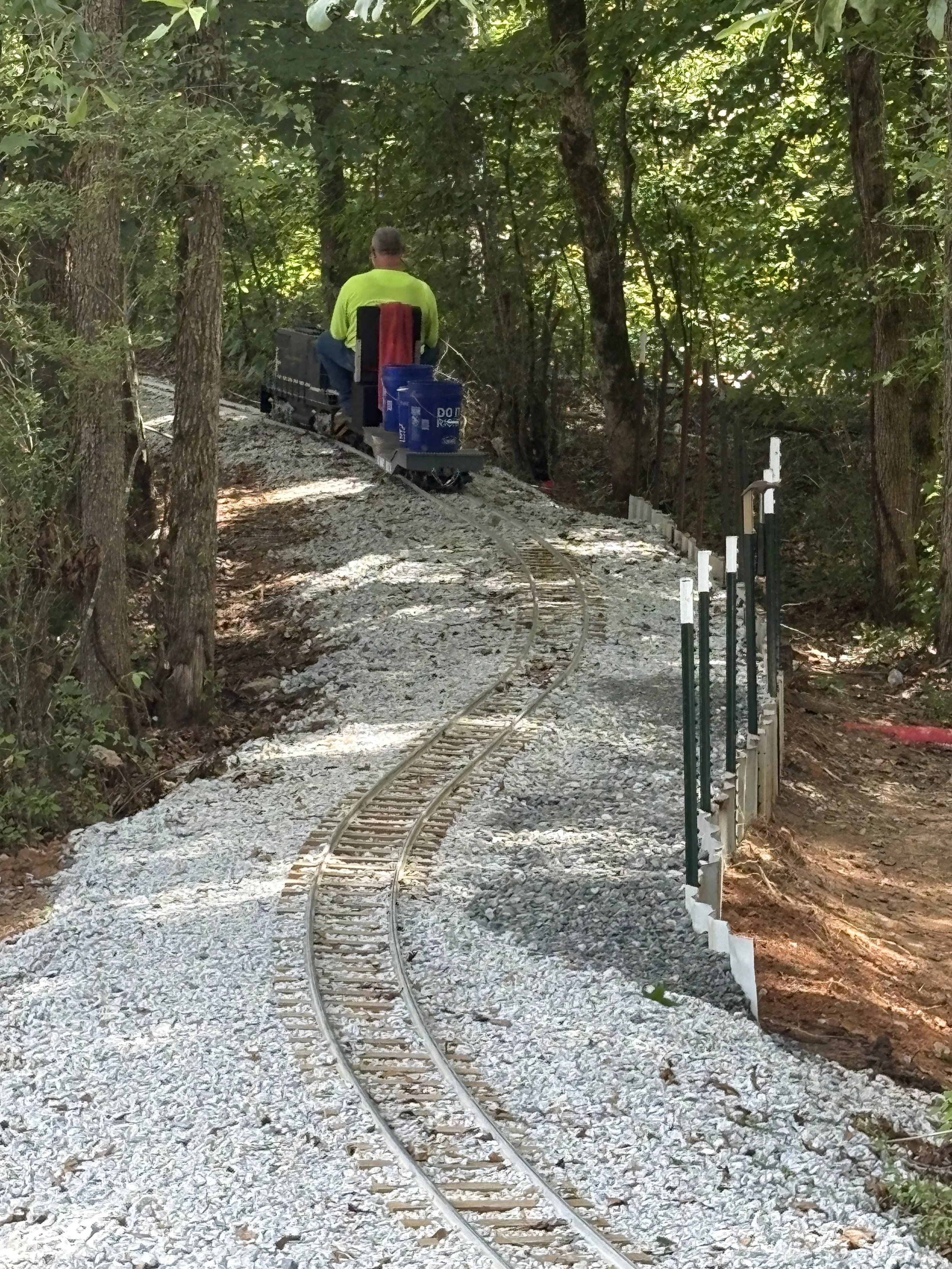

Wes also jumped in and help build a temporary crossing so Rick and “Bob Jr” could start bringing in dirt for the “Grandma Line”. Rick spent most of the morning bringing in load after load into the area to fill in many of the low spots we have in the area. The first layer of dirt will settle the next few weeks with more dirt to be brought in later which will also require time for the dirt to settle and compact. Overall, the great news is the “Grandma Line” has made a great deal of progress the past couple of weeks and if all goes well this year, we could get this line completed by fall. If you are looking to get involved, we need track panels and a switch built.

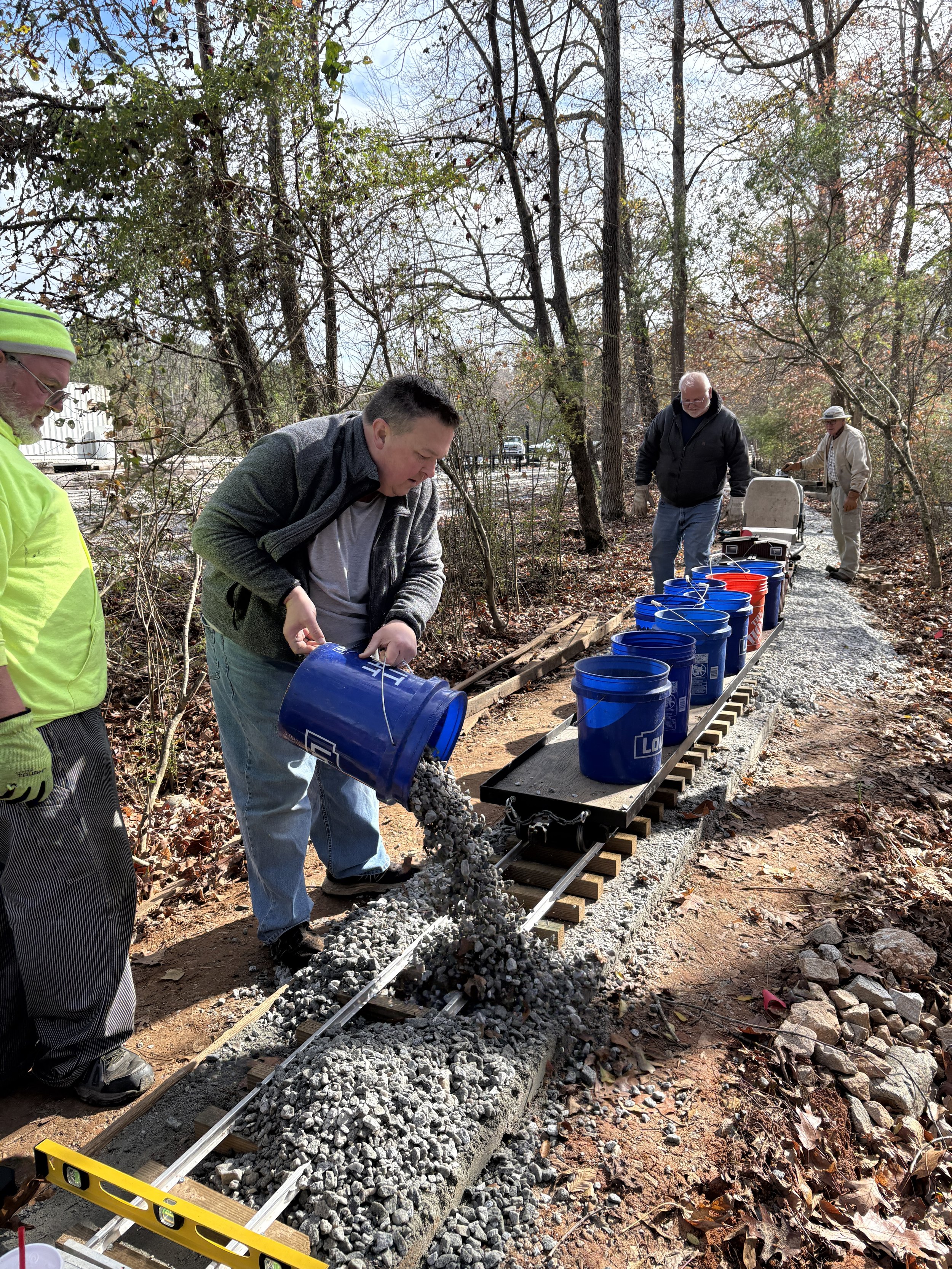

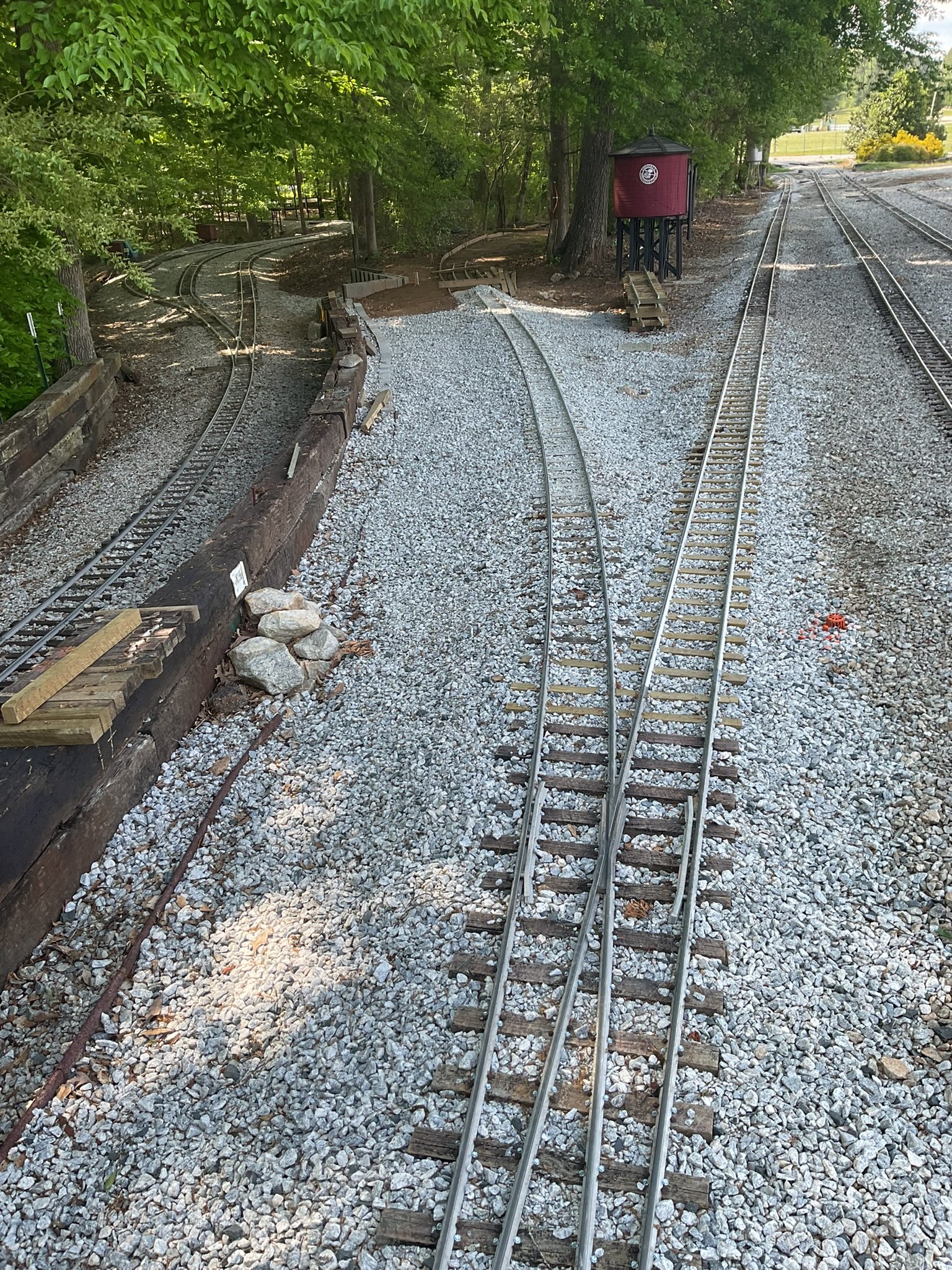

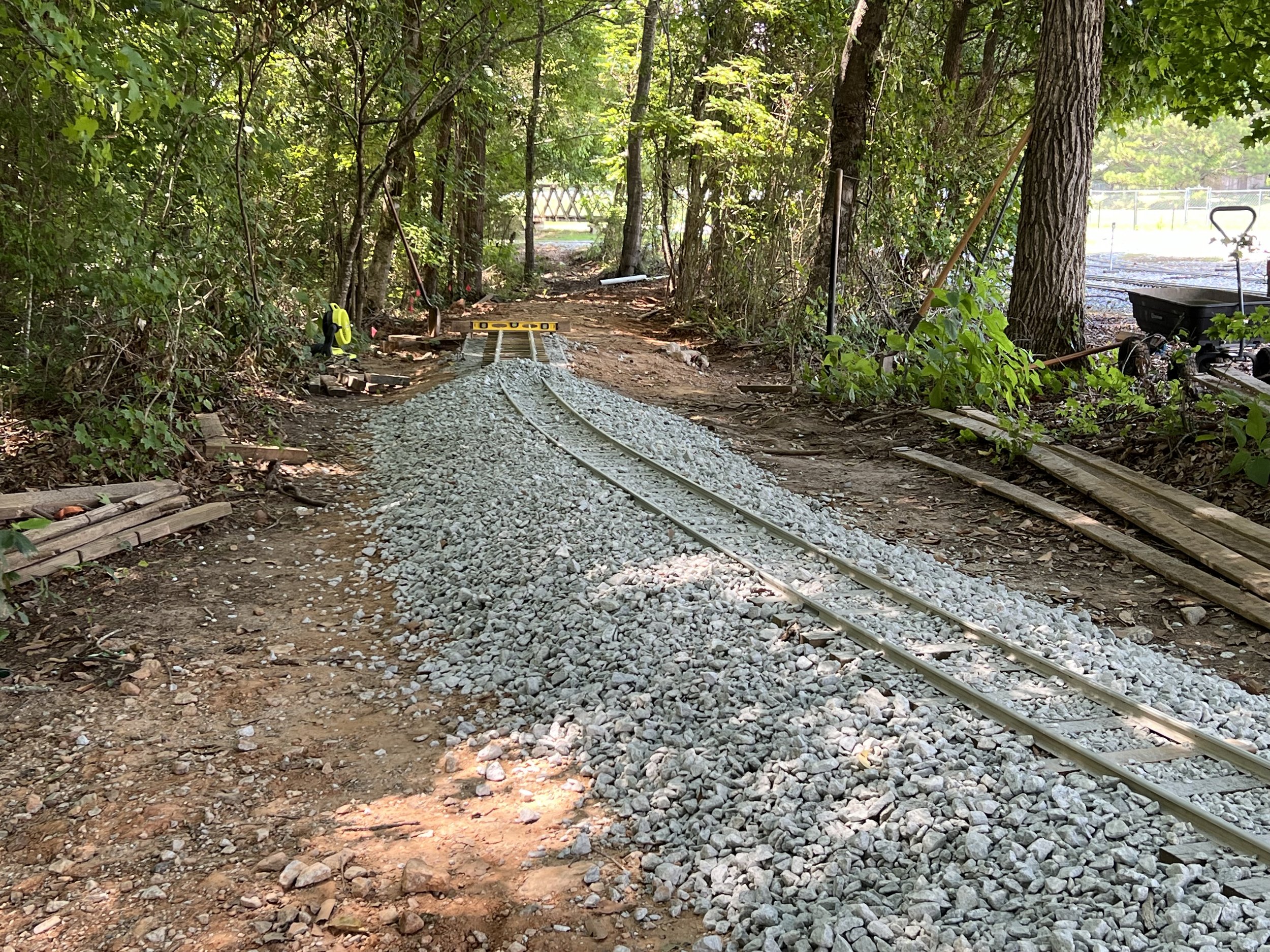

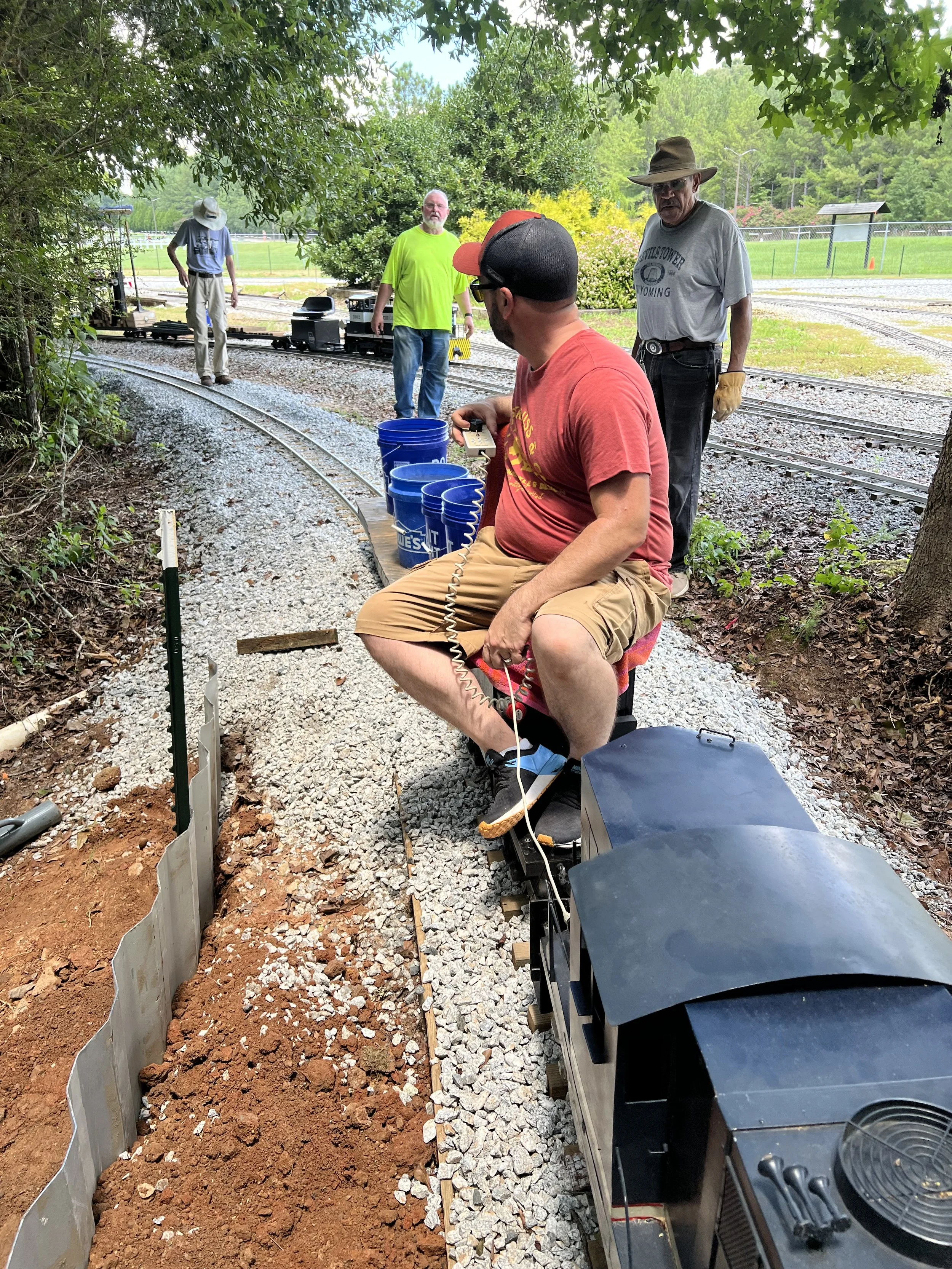

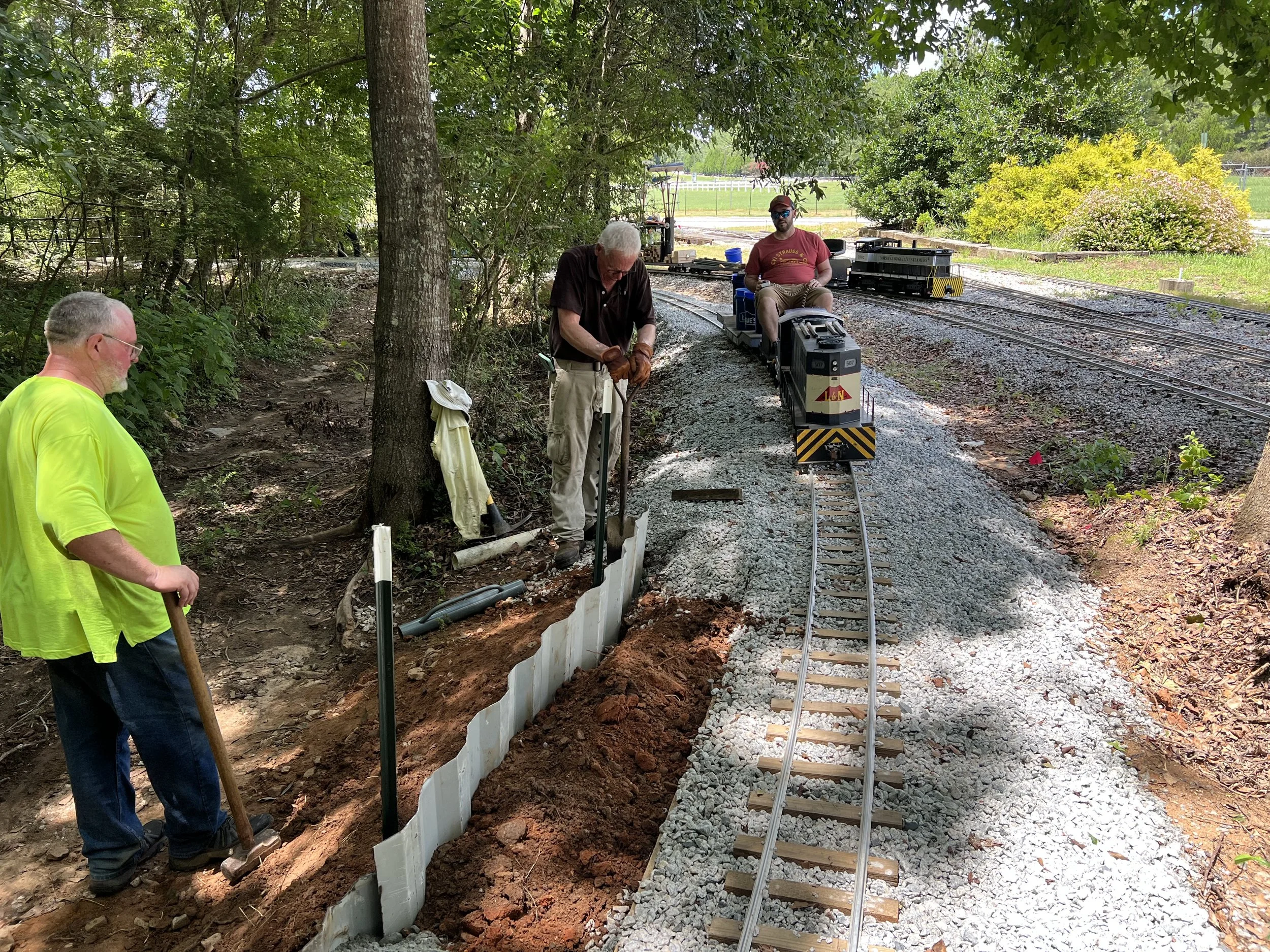

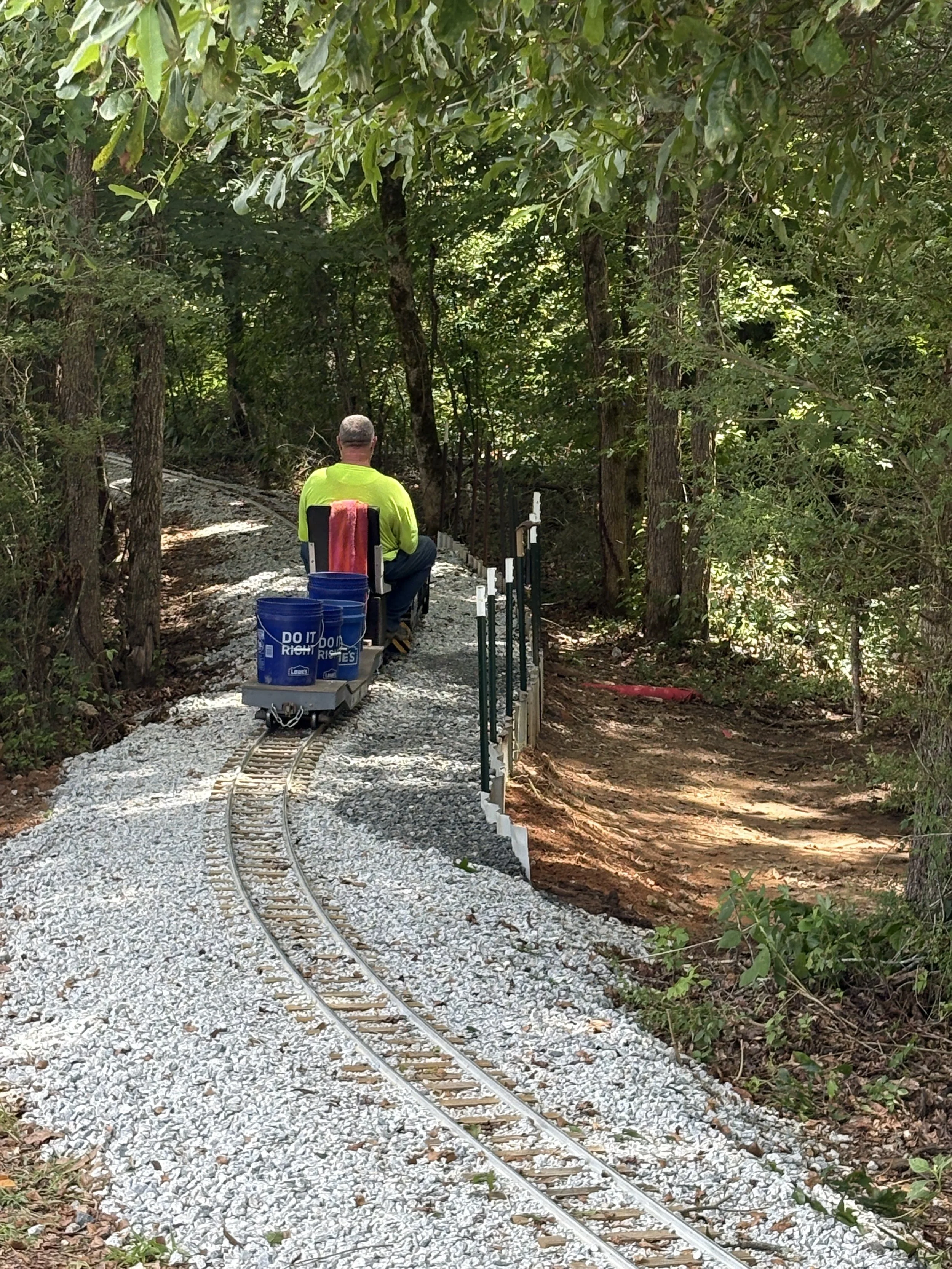

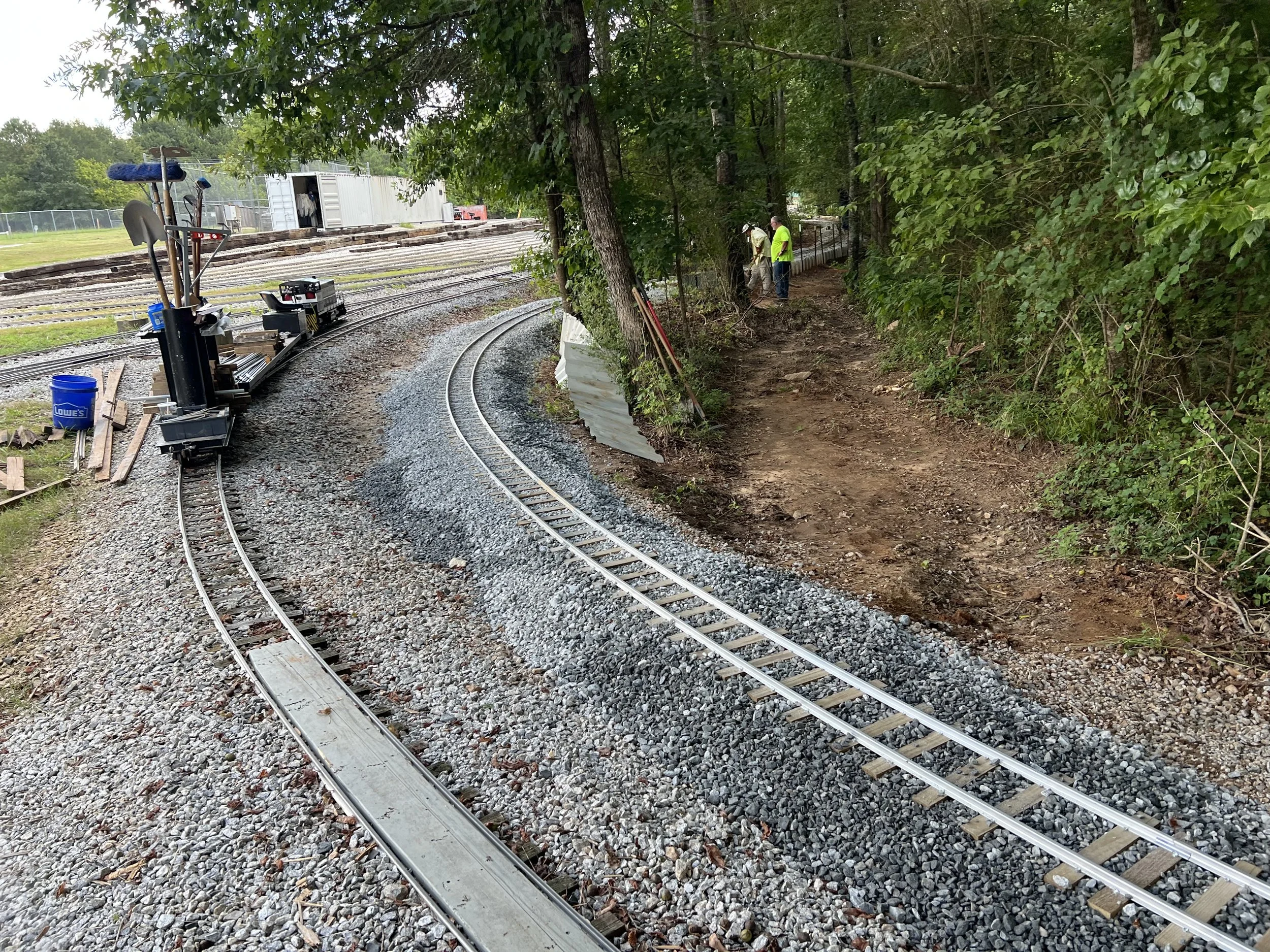

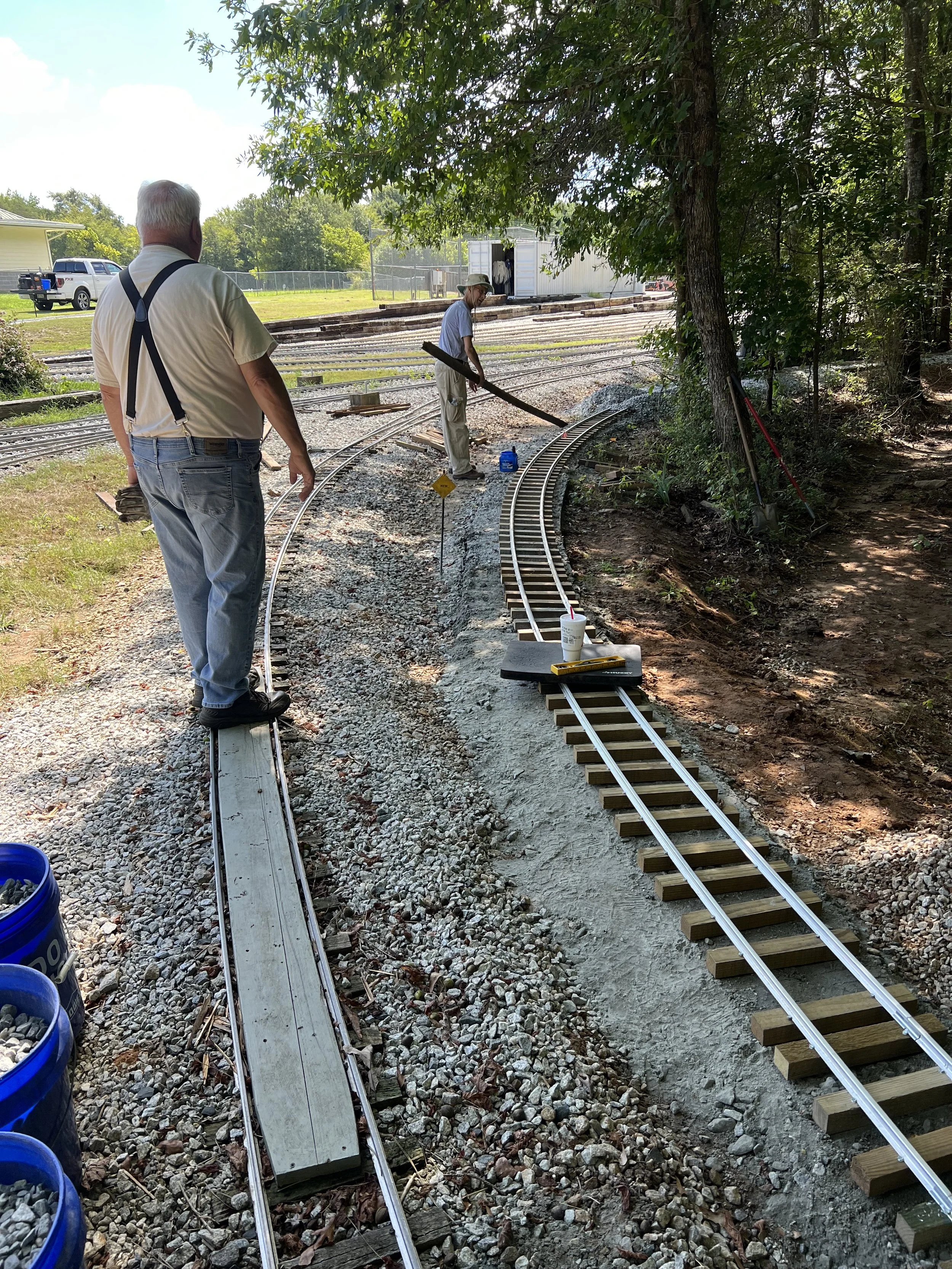

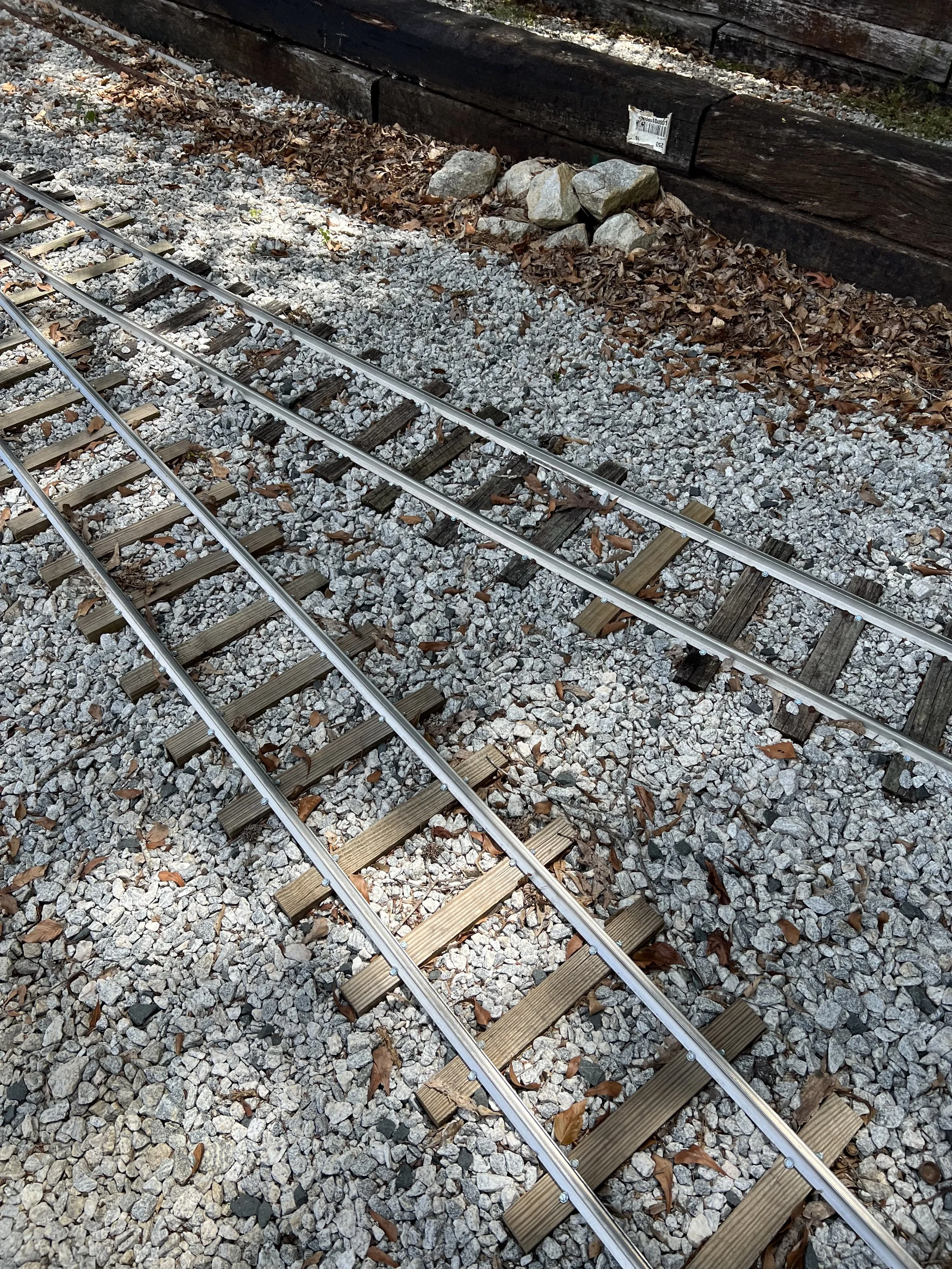

The crew also worked on ballasting both ends of the water line extension and spent time realigning the existing water line track and adding additional ballast. During our next workday the water line track will begin to operate as a mainline for traffic traveling east on the railroad. This will also allow west bound traffic to move over to the track next to the water line and begin traveling across the “LaVay Bridge”. More details on the changes to the railroad operations in the coming weeks.

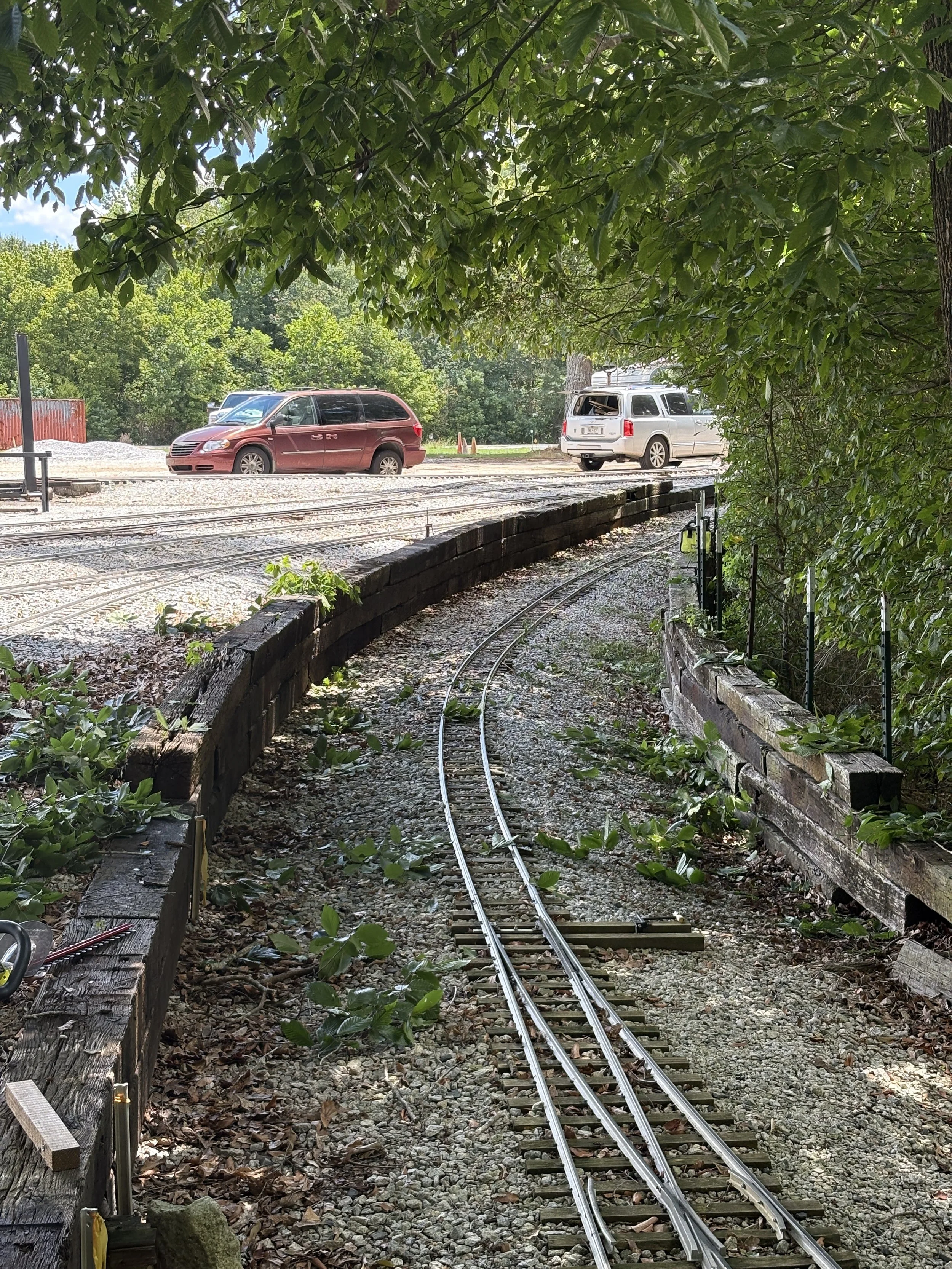

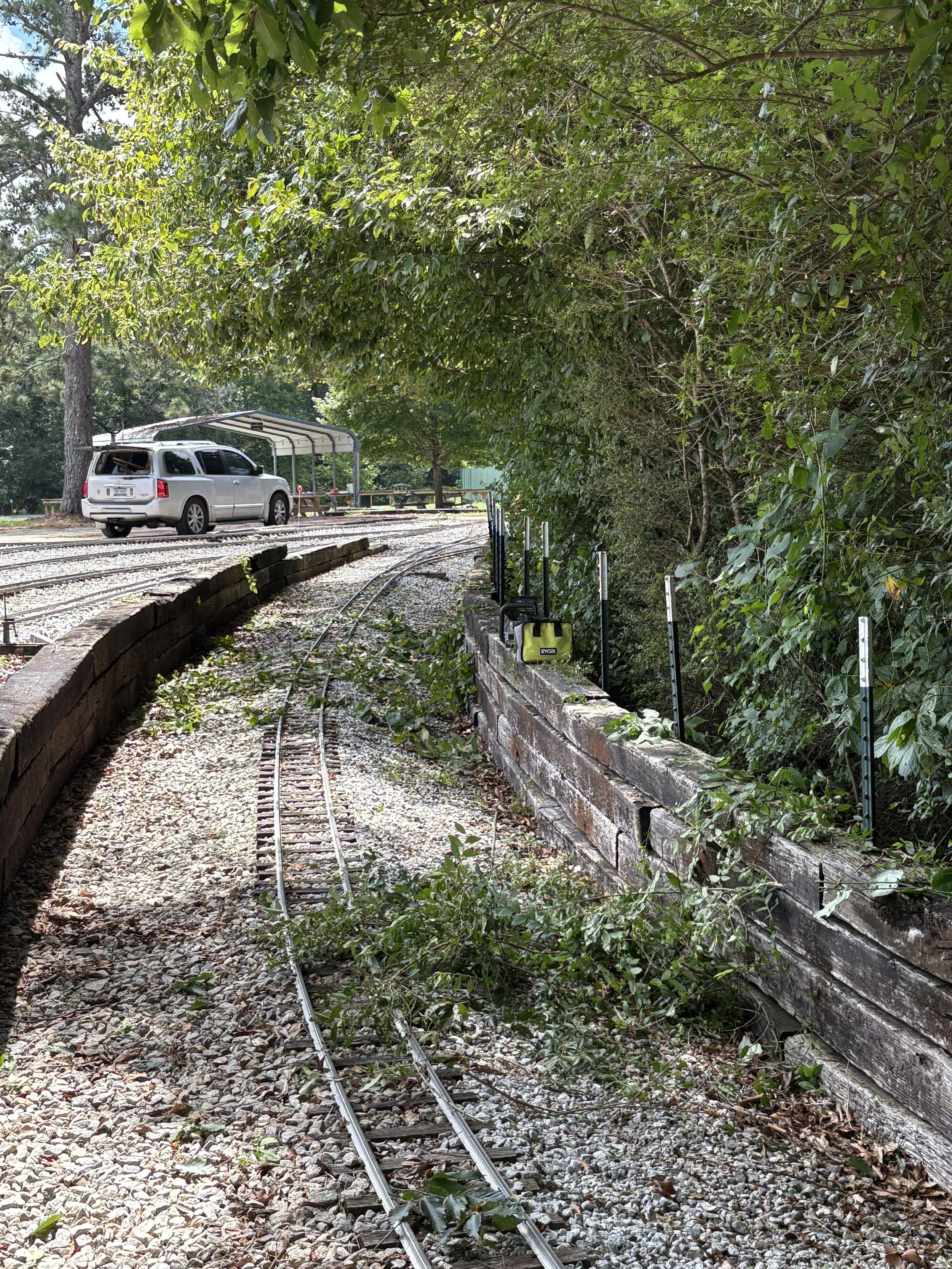

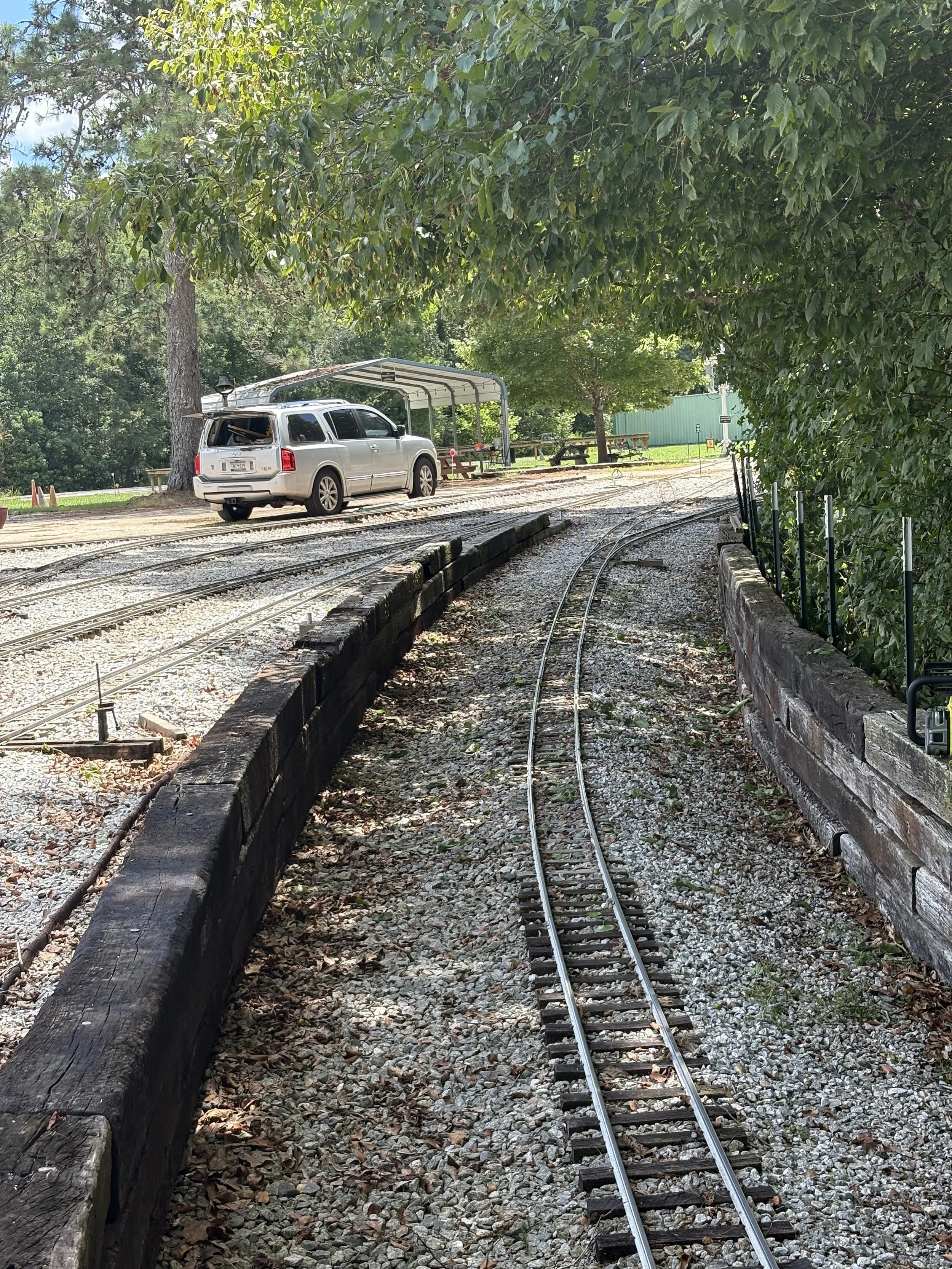

As the day was wrapping up John and Wes took time to make additional changes to the railroad tie wall near the east end of what will become the “Grandma Line”. They swapped out a couple of bad ties with newer ones and will begin the process of bringing in dirt and other material to secure the wall and prepare the ground for future roadbed through that area.
Grandma Line and Water Line Project Update - February 24, 2024

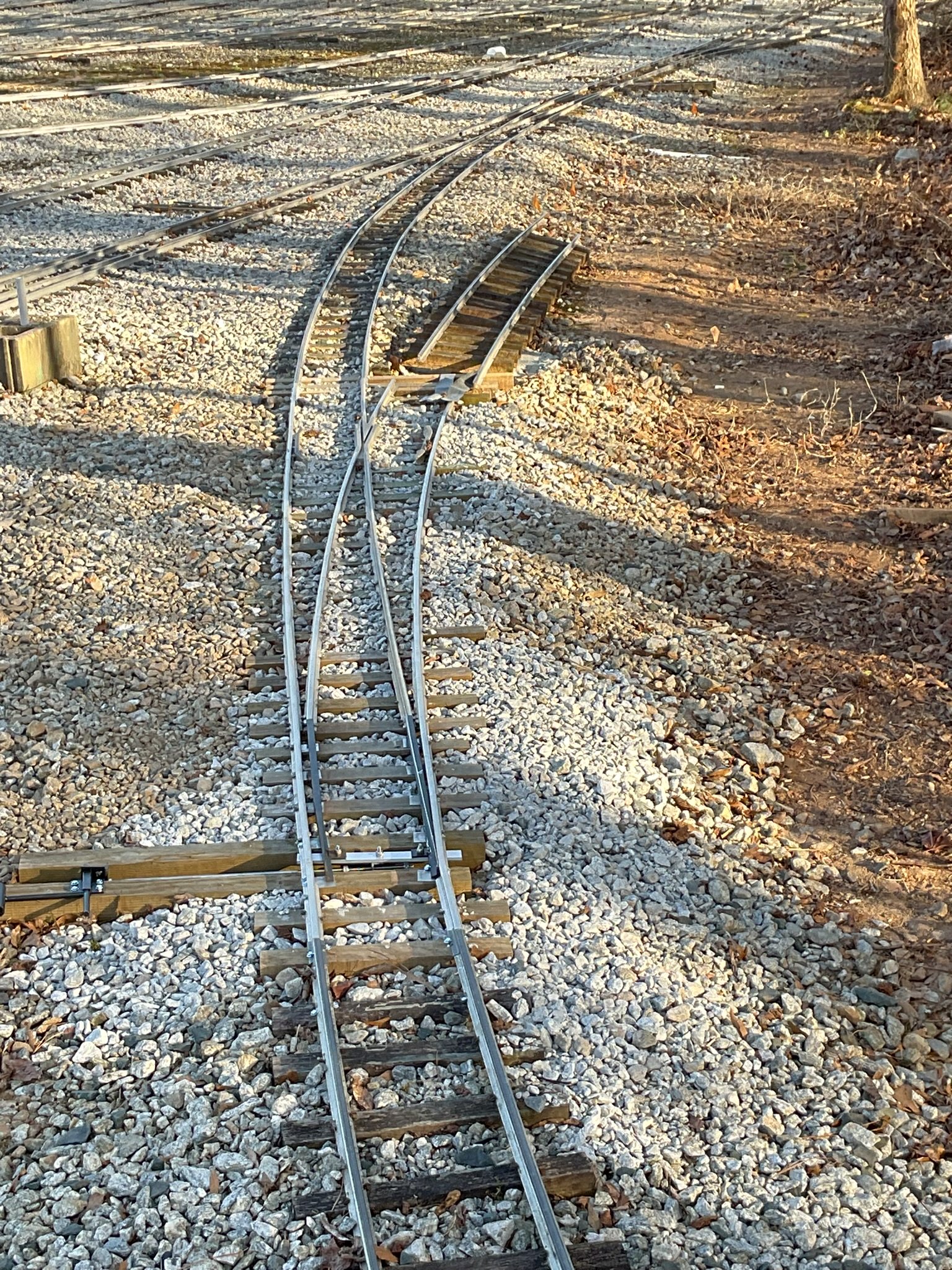

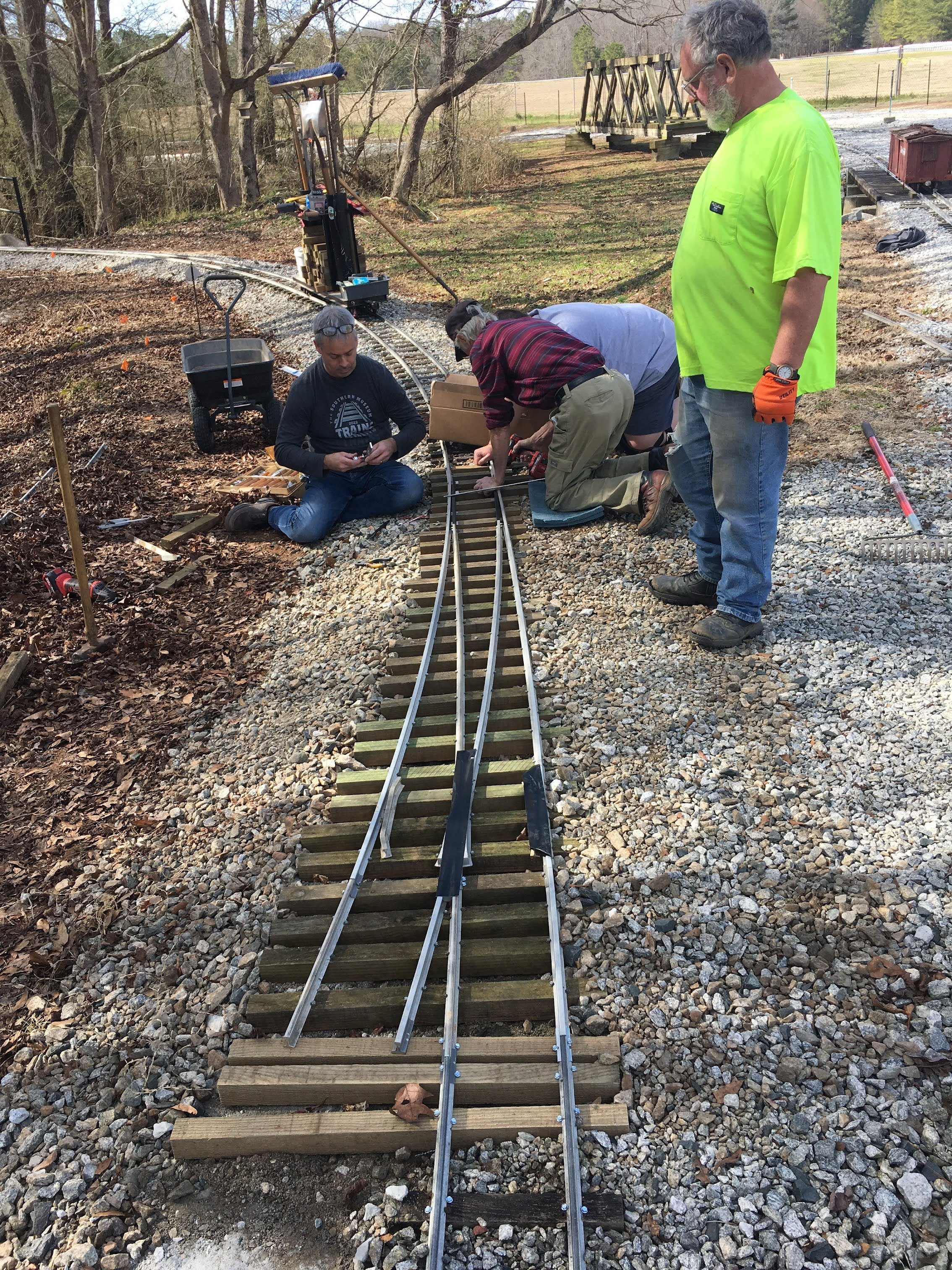

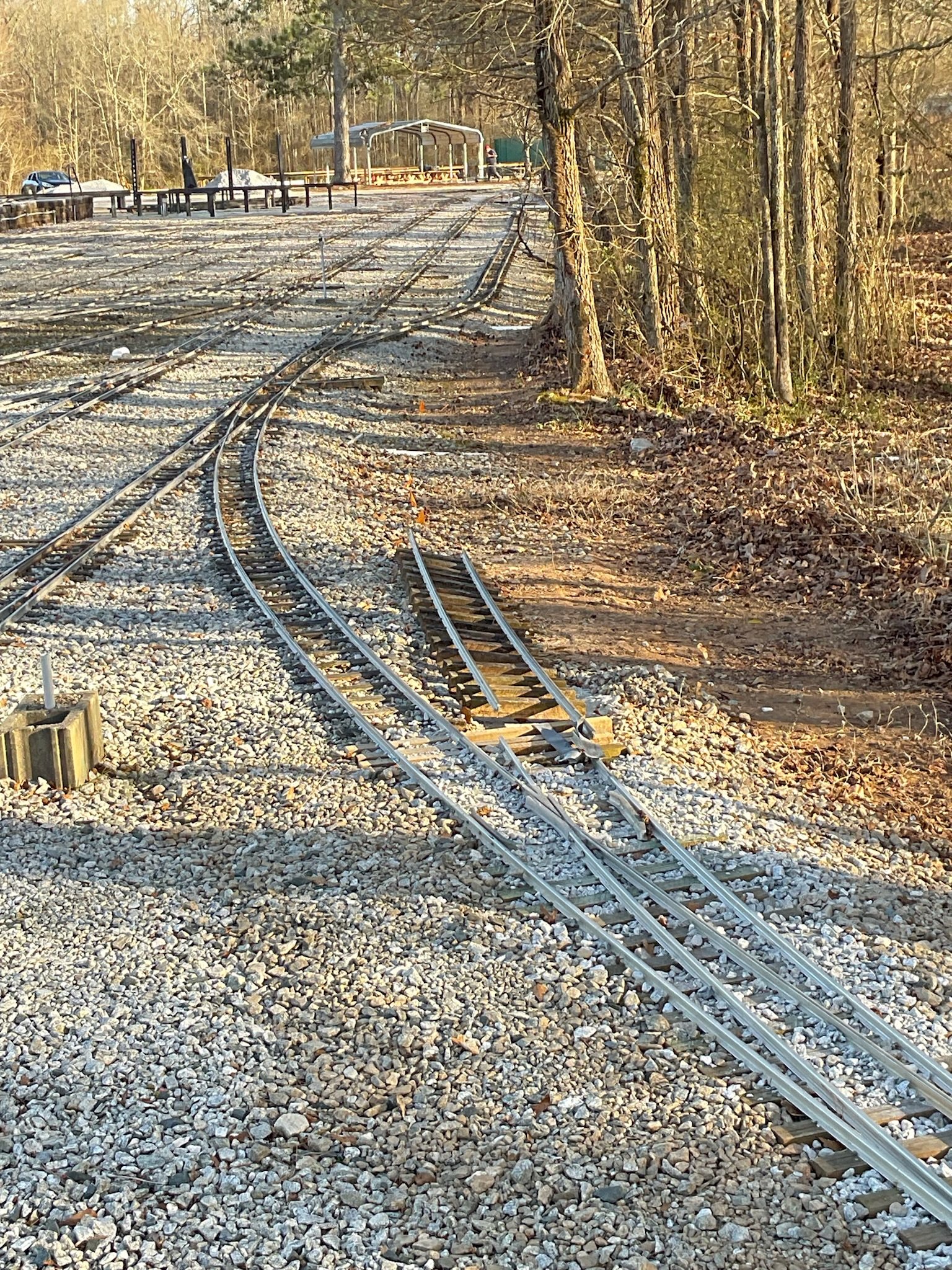

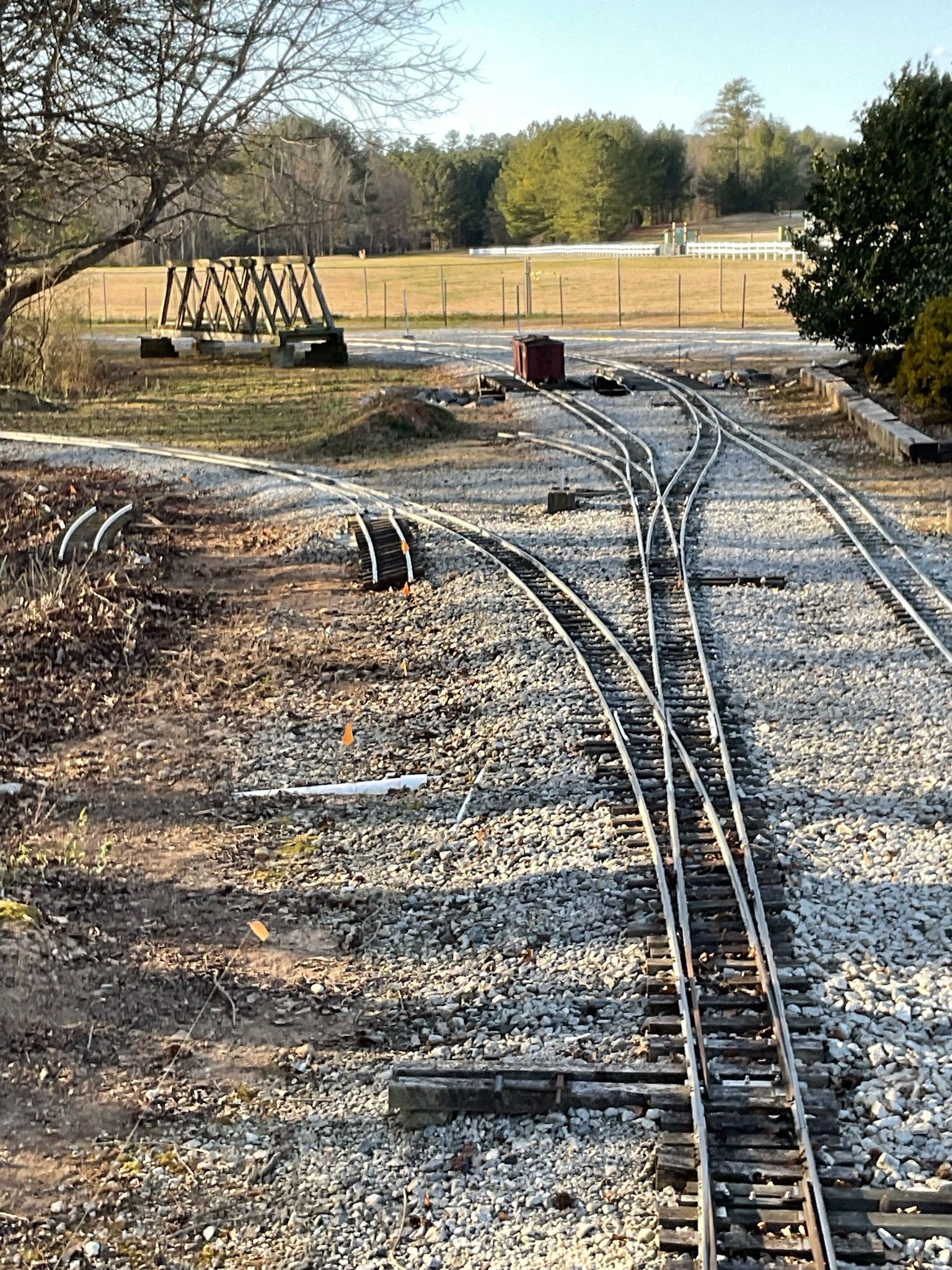

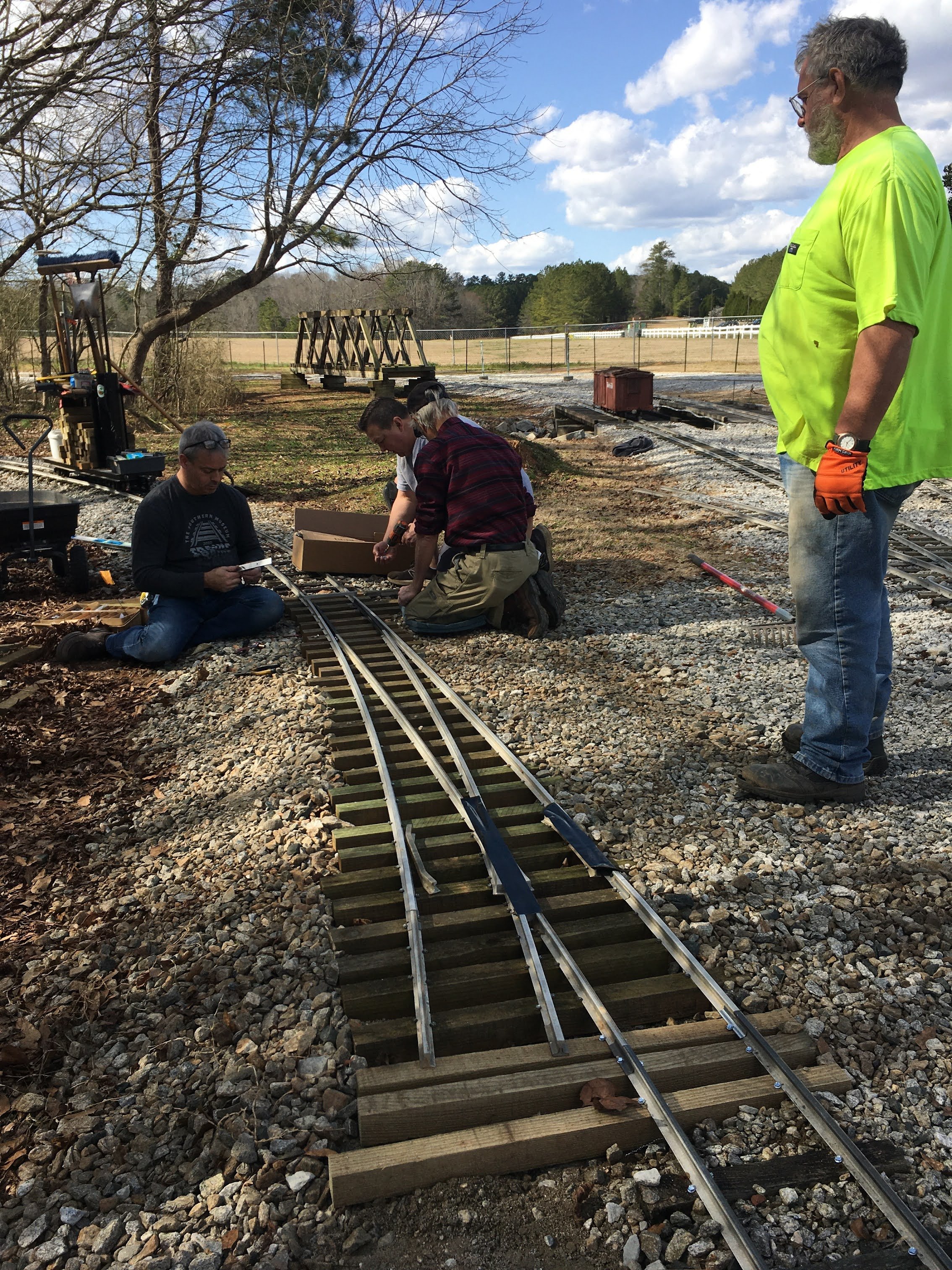

The Grandma Line and Water Line project made progress over the weekend as more fill was put in on the east end of the Grandma Line while on the west end a switch off the mainline was installed that will connect the water line to the mainline in a new location. Additional work is scheduled to complete so that the water line can be used as a mainline in the coming months.
The Grandma Line and Water Line project made progress over the weekend as more fill was put in on the east end of the Grandma Line while on the west end a switch off the mainline was installed that will connect the water line to the mainline in a new location. Additional work is scheduled to complete so that the water line can be used as a mainline in the coming months.

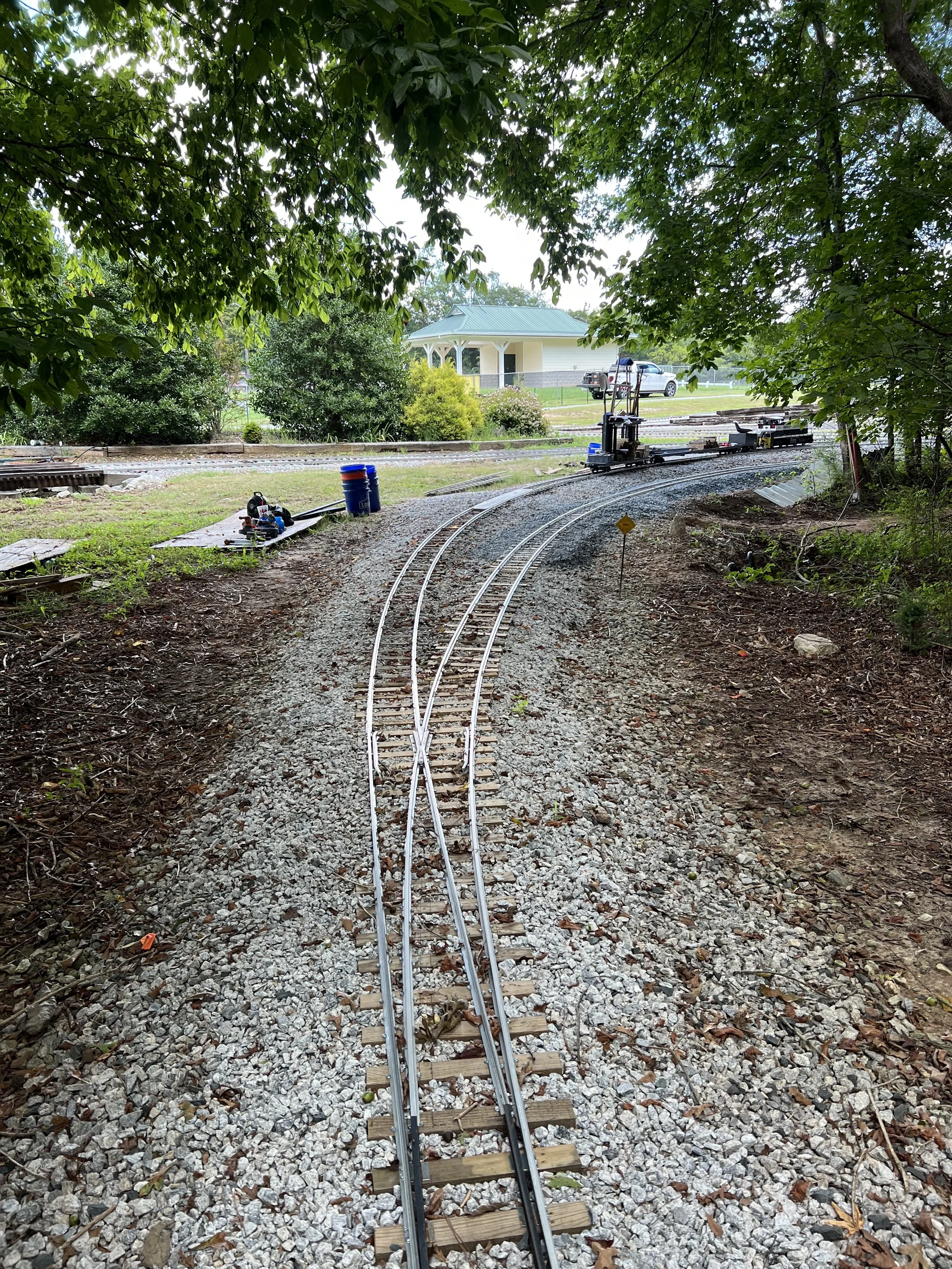

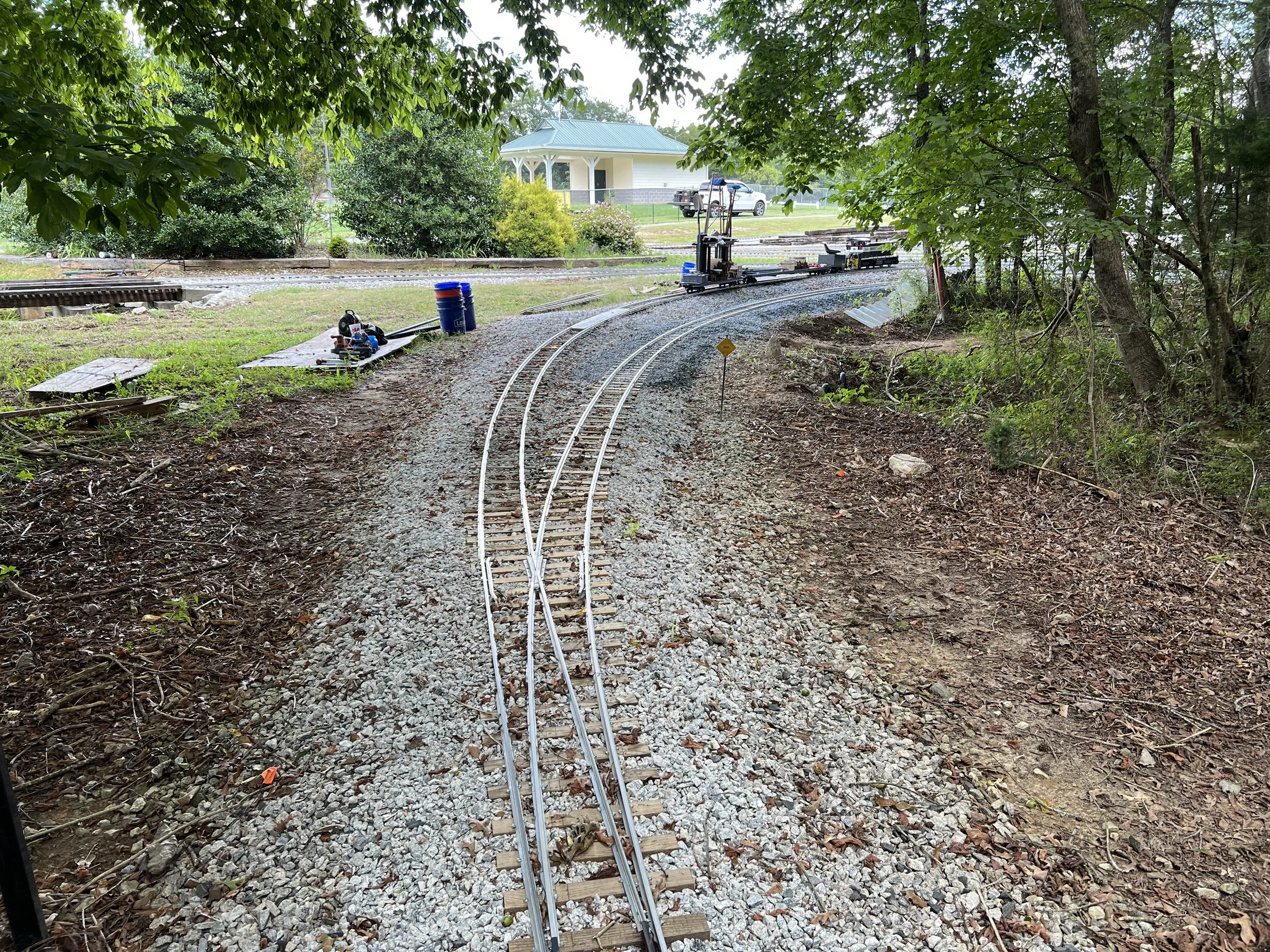

Last Grandma Line workday of 2023 happened on Saturday with the installation of a new mainline switch

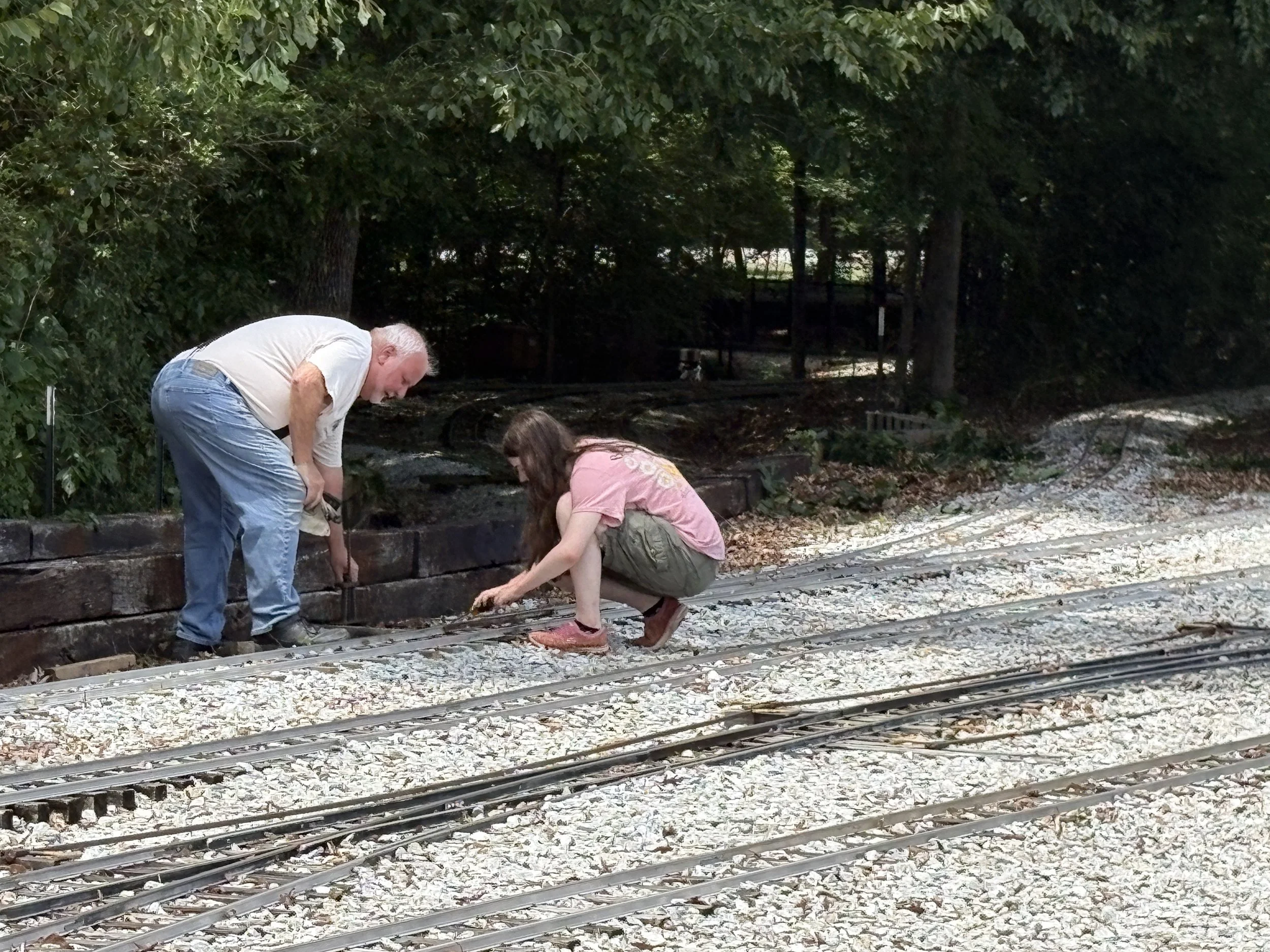

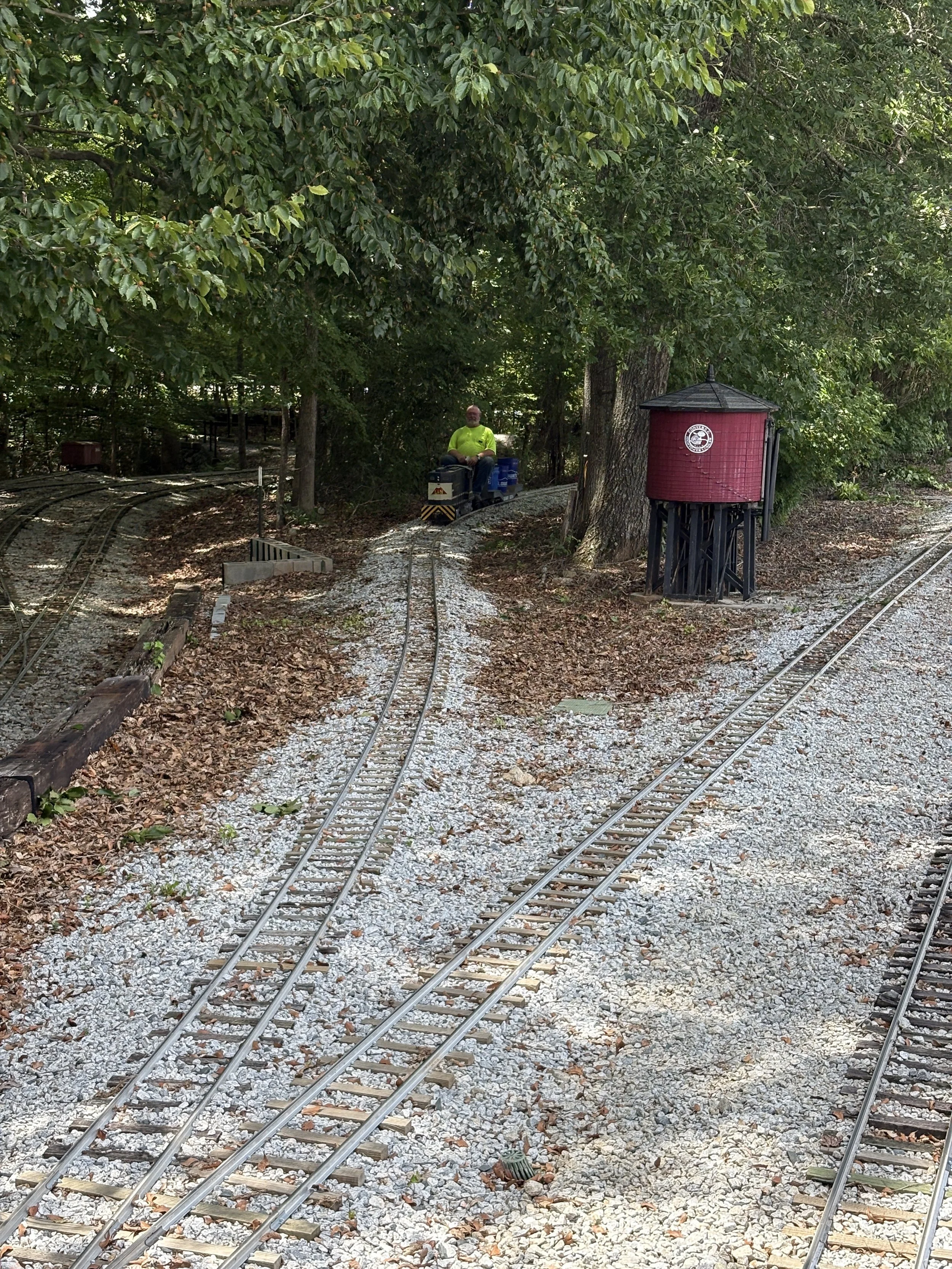

As 2023 winds down work on the “Grandma Line” took place on Saturday, December 30th with a major milestone taking place with the installation of a new mainline switch. This new switch will eventually connect both the “Grandma Line” and the east end of the water line to the mainline. Until then John and Wes also installed a few straight panels off the new switch and began to map out the relocation the existing water line switch and what track panels will need to be built next. You might be asking what switch is being relocated, well it is the switch closest to the red water tower on the east end of the water siding track. This relocation is needed to connect the “Grandma Line” and water line together before they eventually connect to the mainline.
As 2023 winds down work on the “Grandma Line” took place on Saturday, December 30th with a major milestone taking place with the installation of a new mainline switch. This new switch will eventually connect both the “Grandma Line” and the east end of the water line to the mainline. Until then John and Wes also installed a few straight panels off the new switch and began to map out the relocation the existing water line switch and what track panels will need to be built next. You might be asking what switch is being relocated, well it is the switch closest to the red water tower on the east end of the water siding track. This relocation is needed to connect the “Grandma Line” and water line together before they eventually connect to the mainline.
As we move into 2024 John and Wes are looking for help with making a temporary grade crossing near the west end of the water line. This temporary grade crossing will be used to haul dirt, ballast, and more from the gravel pit through the woods to the east end of the “Grandma Line”. If you are interested in helping with this project click here and let John know.
Water Line portion of the Grandma Line Project Explained
The water line portion of the Grandma Line project is intended to temporarily convert the existing water line siding into a mainline track while the Grandma Line is being installed. This helps the railroad operate a little more efficiently as well with the shift of mainline traffic to the water line. First it allows trains traveling East to West to stay off the yard track and also allows west bound traffic to cross over the LaVay bridge and avoid the cross over switches just beyond the station. Once the Grandma Line is complete the water line will become the water line again with East bound traffic traveling on the Grandma Line.
The water line portion of the Grandma Line project is intended to temporarily convert the existing water line siding into a mainline track while the Grandma Line is being installed. This helps the railroad operate a little more efficiently as well with the shift of mainline traffic to the water line. First it allows trains traveling East to West to stay off the yard track and also allows west bound traffic to cross over the LaVay bridge and avoid the cross over switches just beyond the station. Once the Grandma Line is complete the water line will become the water line again with East bound traffic traveling on the Grandma Line.
Water line project breakdown (West end 1-4, East end 5-8):

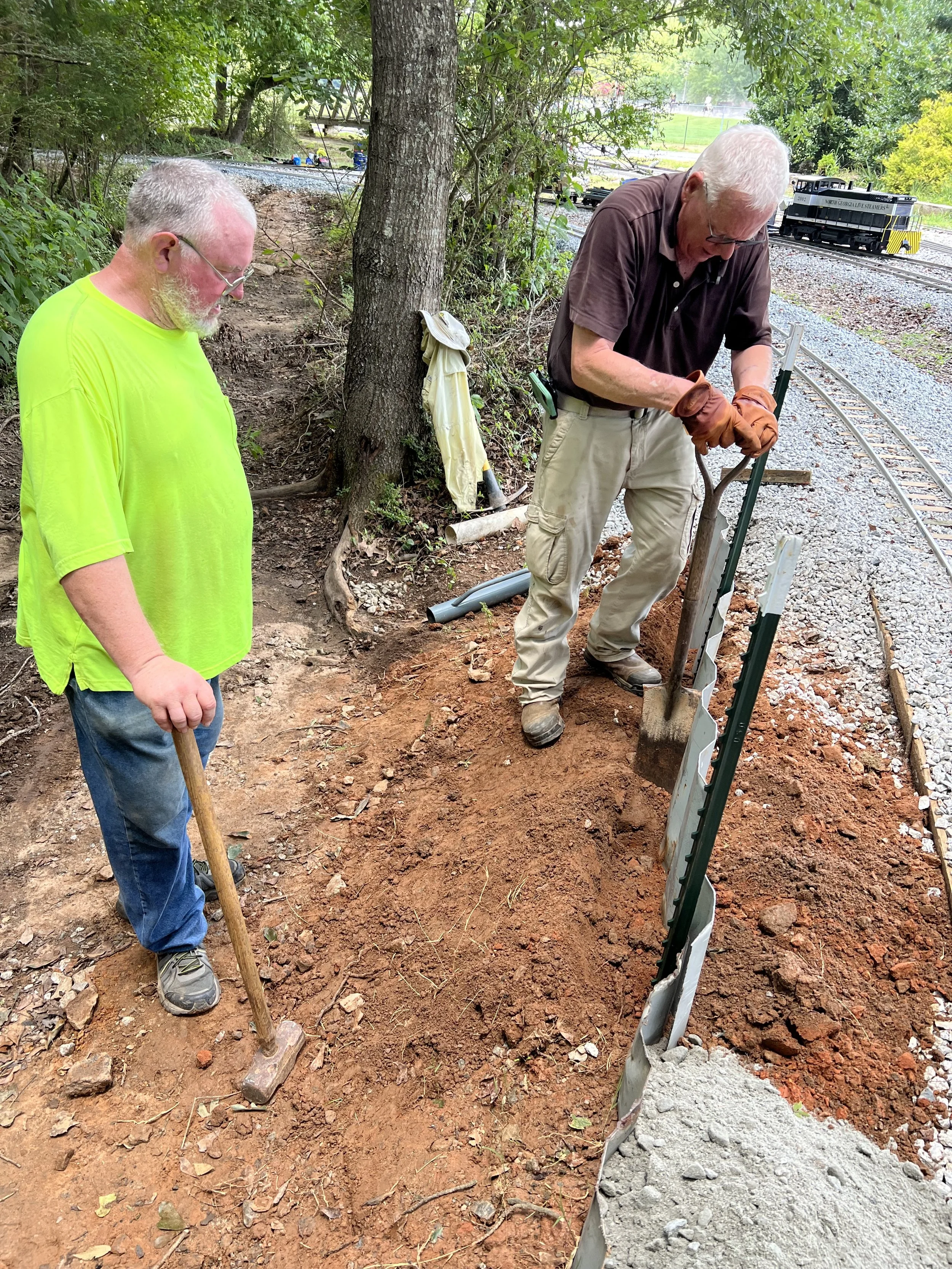

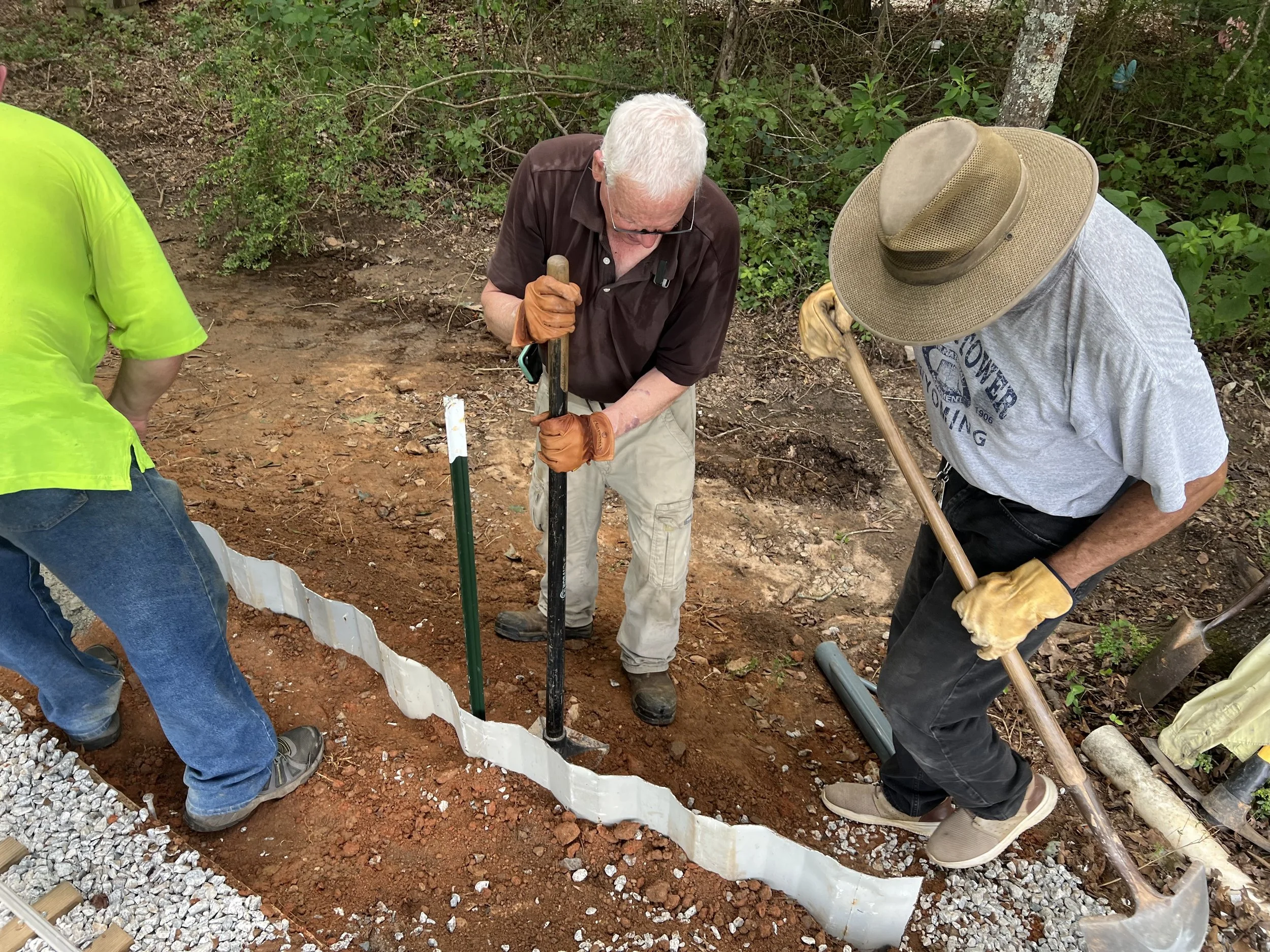

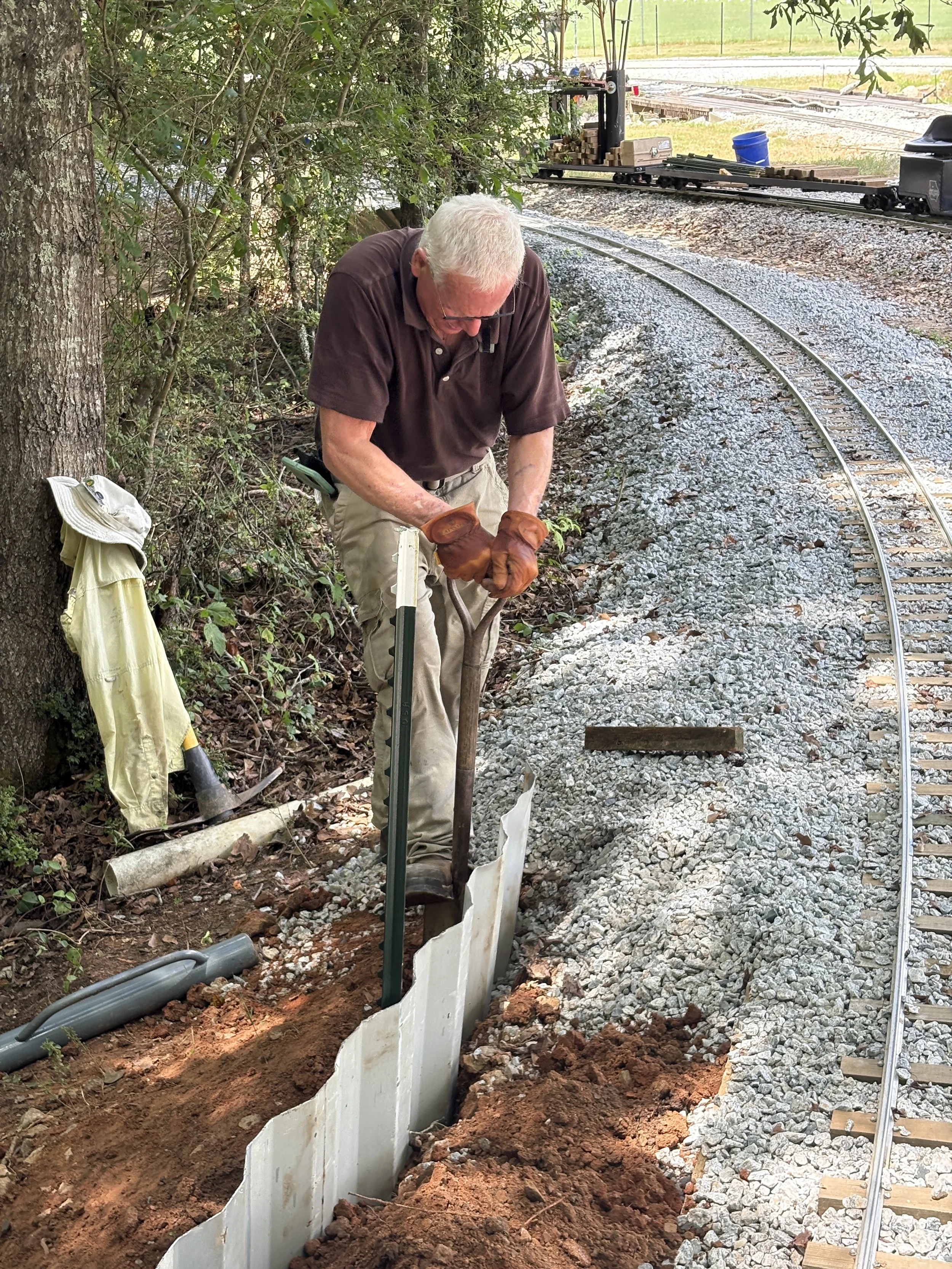

Place Crush & Run forms and fill between two switch locations on West end.
Complete and install curved 100r RH Switch on West end Mainline.
Build and install RH 60r Switch on West end of current Water Line. Sprung points to normally be thrown for curved route.
Build and install track panels connecting Switches in steps 2 & 3. (Upon completing steps 1-4 we can actually start using this route and shift traffic off the yard tracks.)

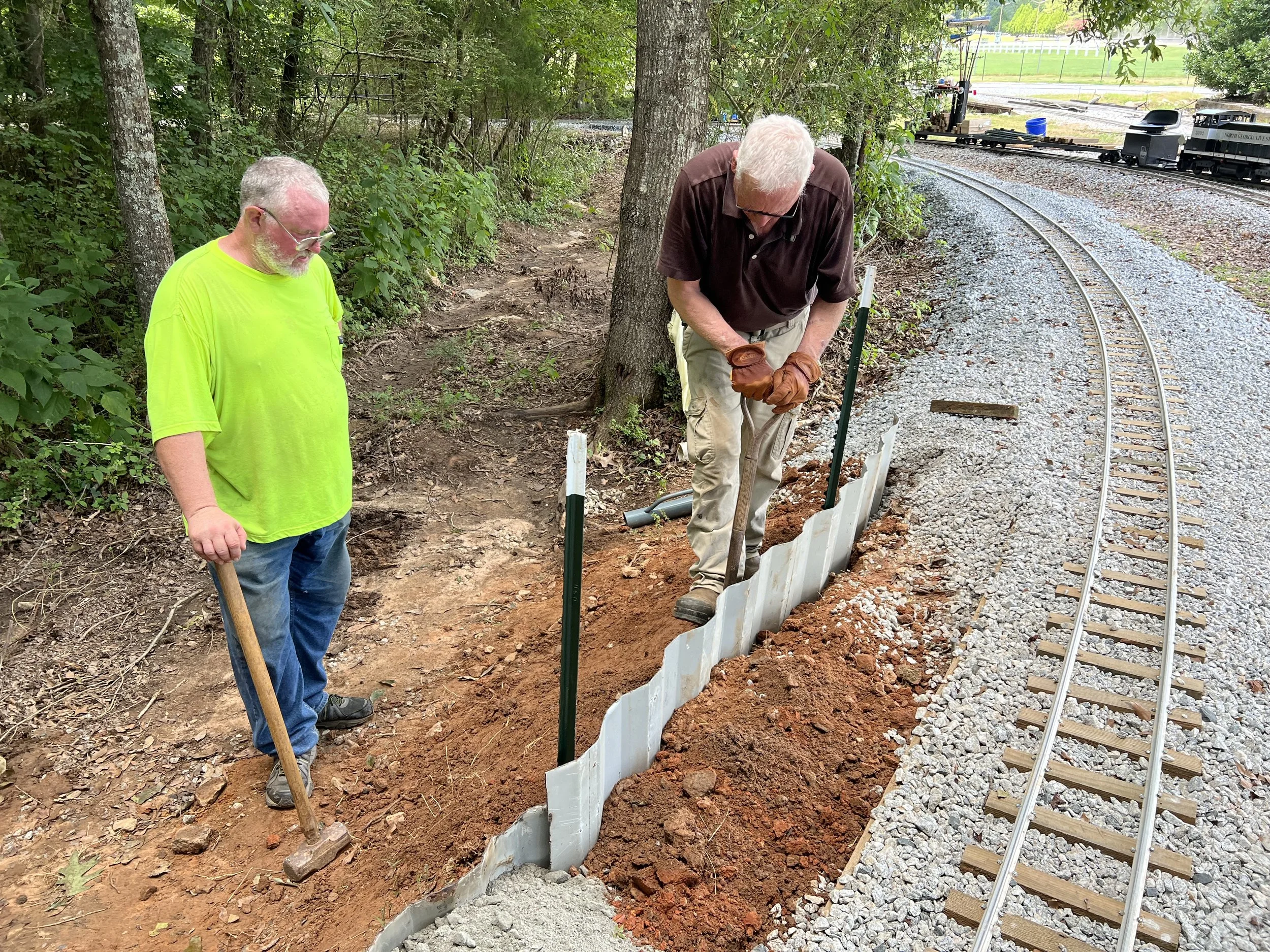

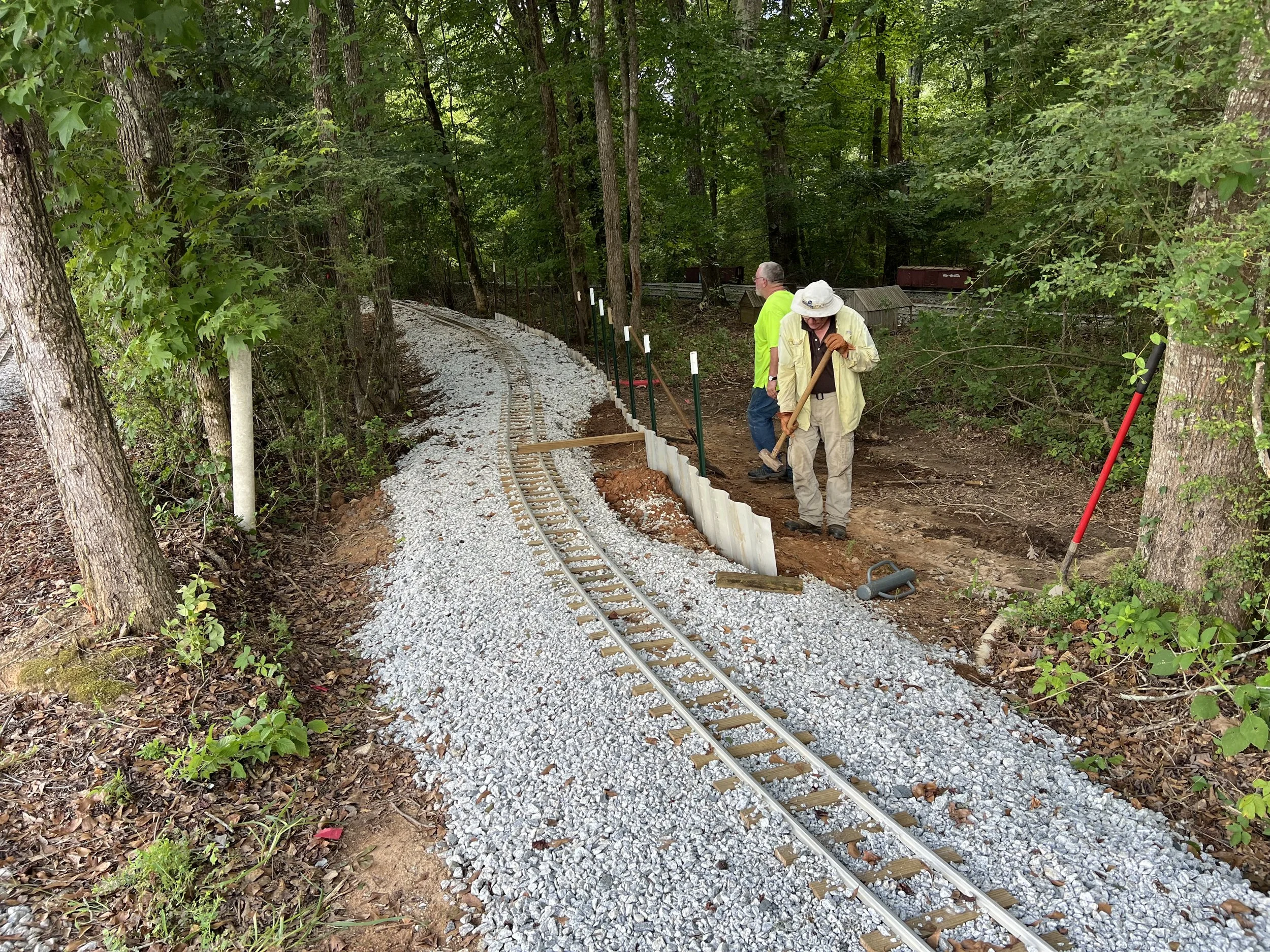

Finish installation of Crush & Run forms and fill on the East end of Water line. Backfill with dirt as necessary, especially near new location of the switch currently marking the East end of the Water Line.
Tweak the LH Switch (currently on the table) so the spring action is viable and cut in East end mainline where marked. Sprung points to normally be thrown for straight route.
Build and install several straight sections on diverging route from previous step.
Shift current East end Water Line switch over to new route from previous two steps, Fill in both gaps with straight track. (One created by removal of switch, the other between new location of switch and the straight part of the current water line.) Ensure proper operation for sprung points to normally be thrown for straight route. (Or this can be designated a non-sprung switch normally thrown for the curved route upon completion of the Grandma Line.)
Grandma Line Project Explained
Here are some details regarding the Grandma Line portion of the project. The details are broken out in three pieces which includes two ends and the middle. Details below.
Here are some details regarding the Grandma Line portion of the project. The details are broken out in three pieces which includes two ends and the middle. Details below.
East end:
1. Complete East end of the Waterline extension.
2. Determine new location for water access (near outer loop) and relocate same.
3. Set additional RR ties.
4. Continue backfill behind RR ties.

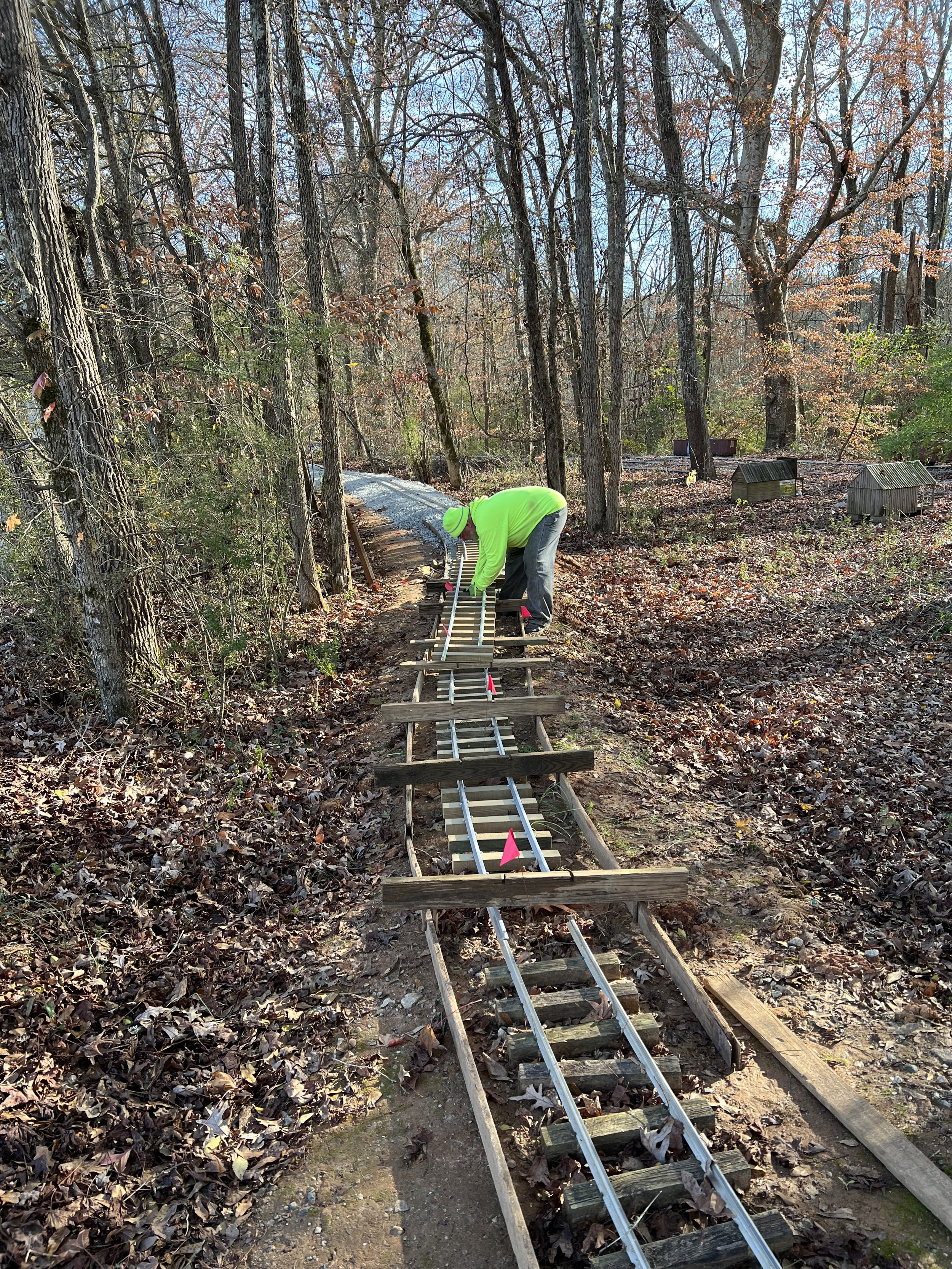

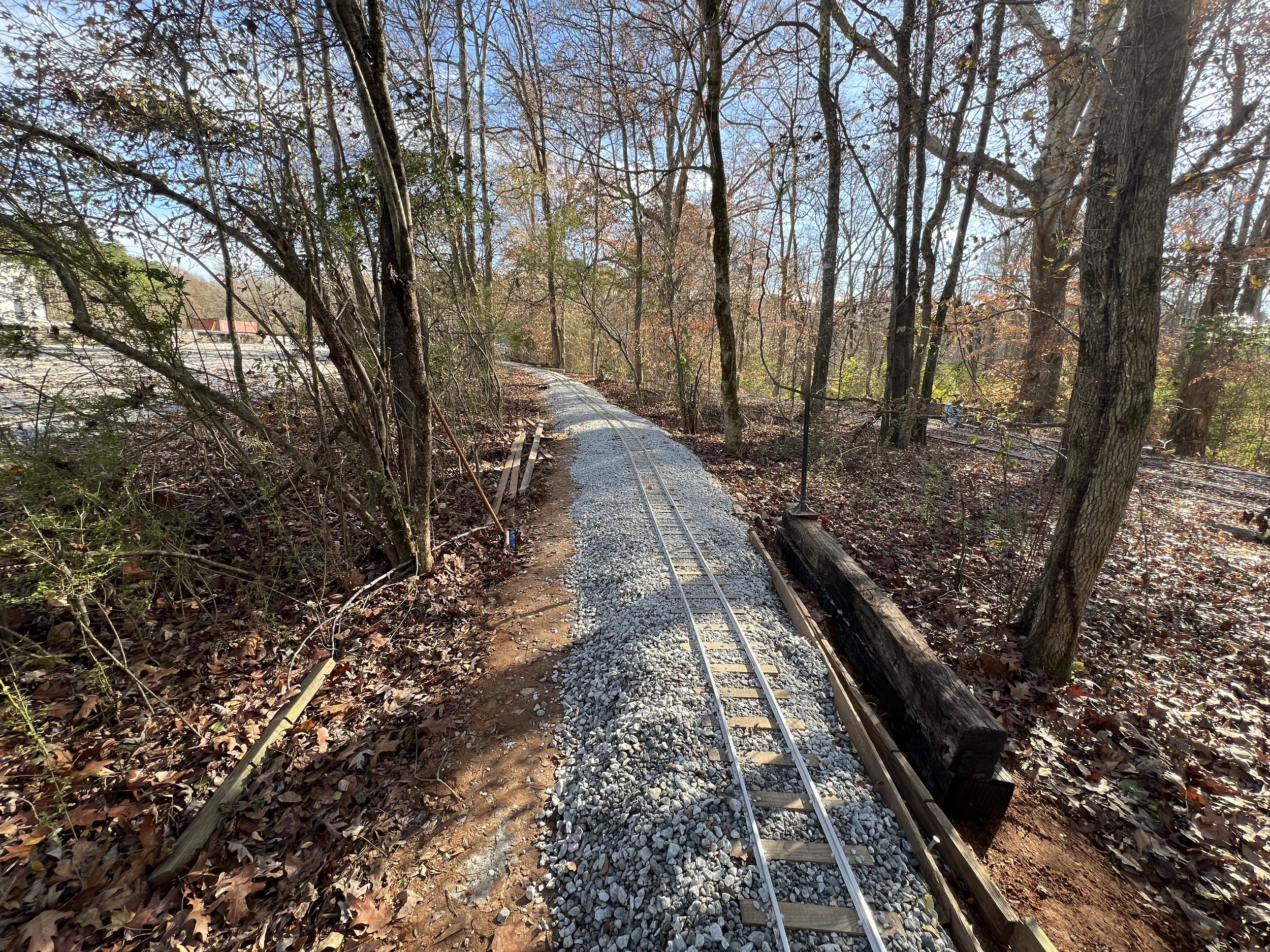

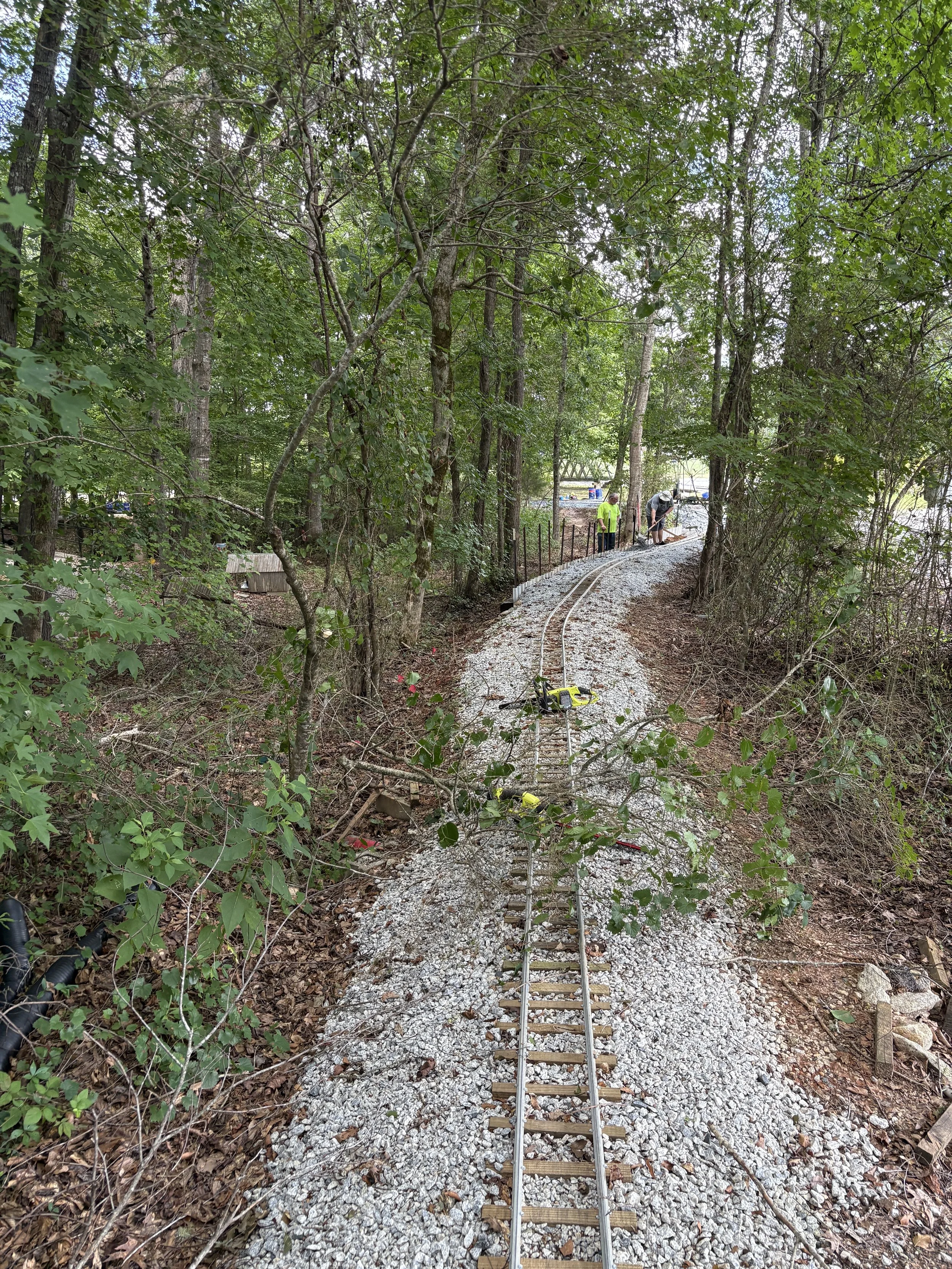

5. Extend East end of Grandma Line starting from the Waterline switch to a point inside the woods. (Forms/crush & run/track)
West end:
1. Make curved RH 100’ r switch
2. Install switch at marked location.

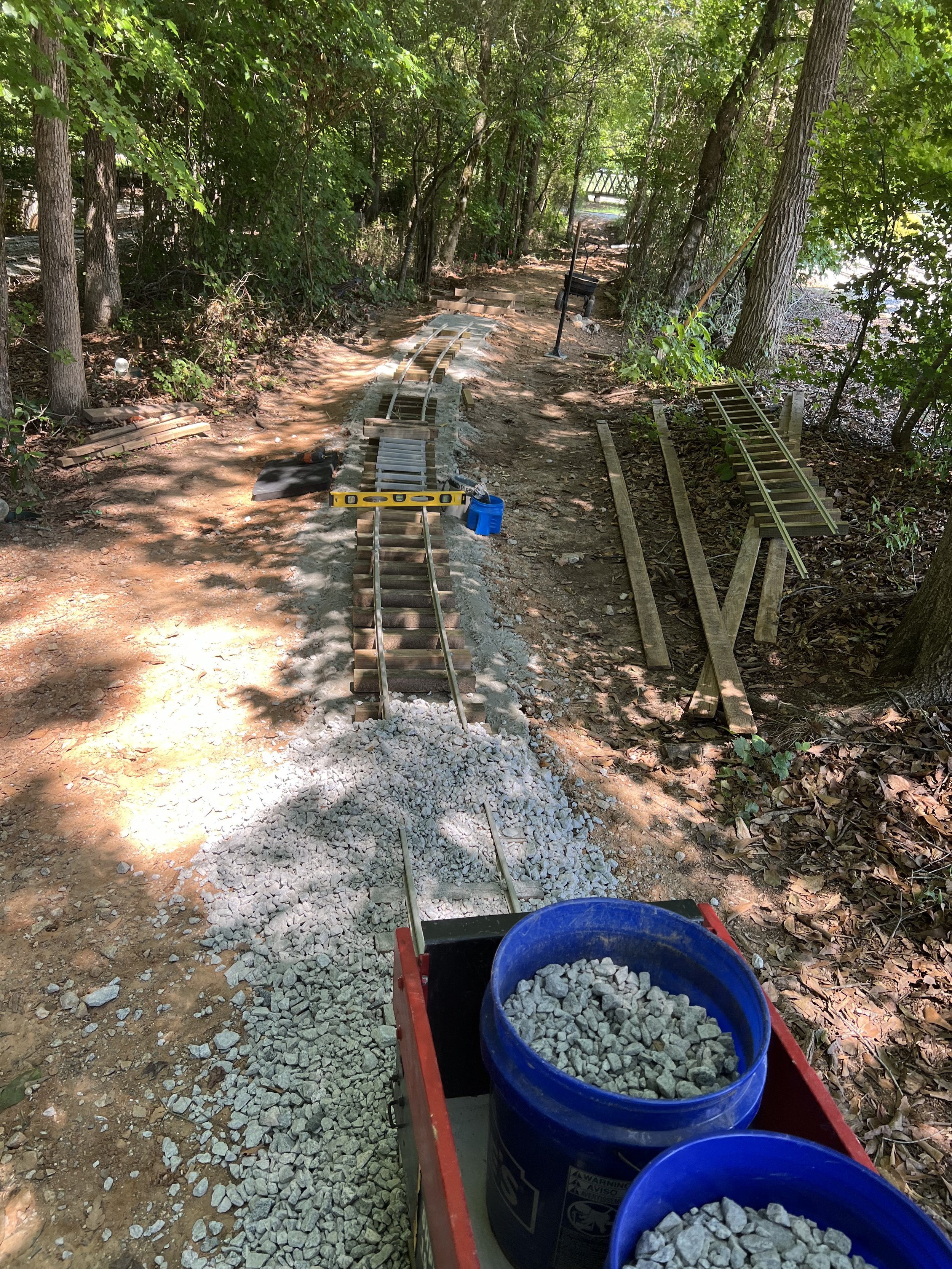

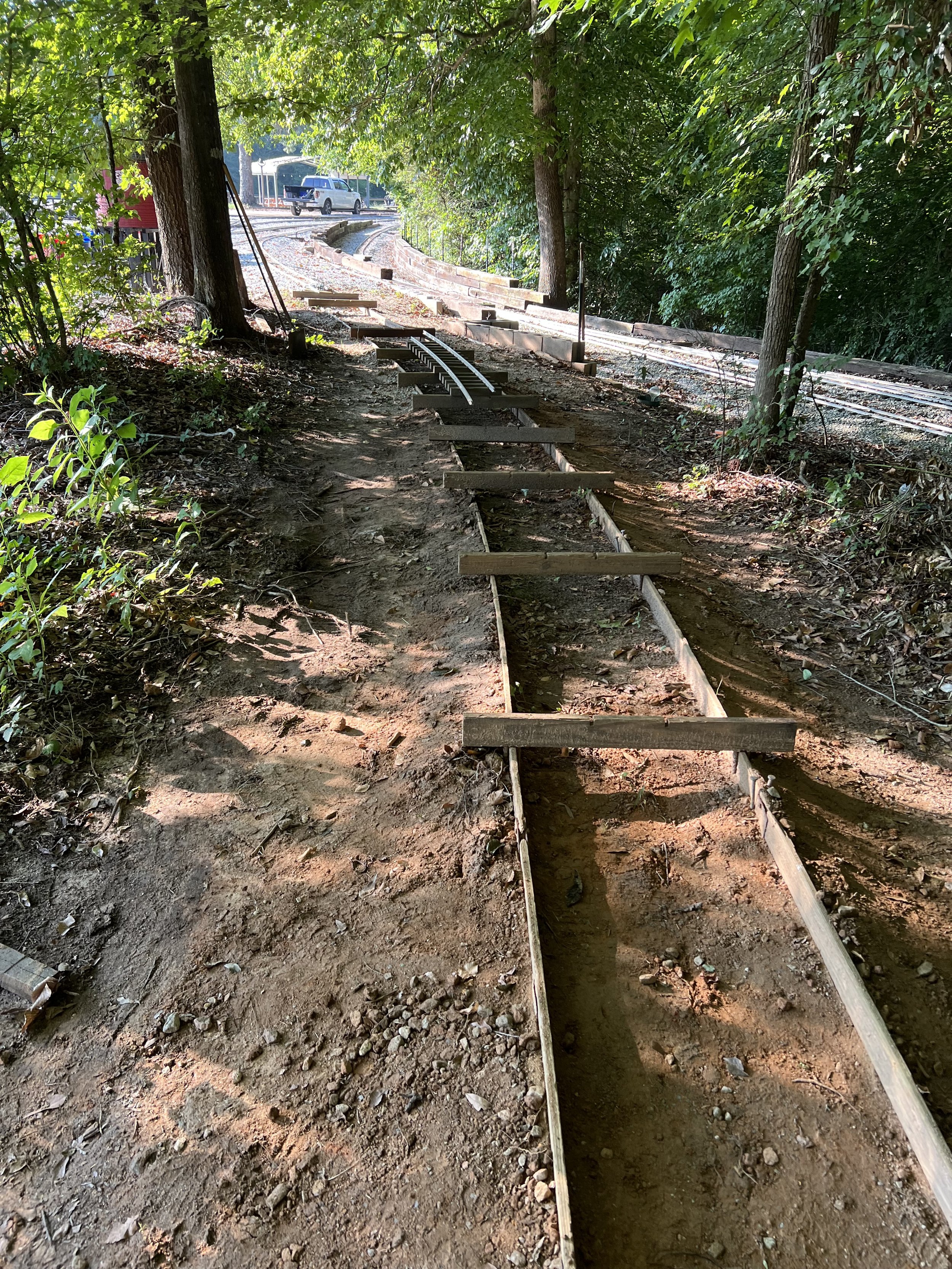

3. Fill sub roadbed from new switch to a point inside the woods. (Forms/crush & run/track)
Woods section (middle):
1. Finalize and mark route.
2. Determine pier placement (span & location).
3. Make pier forms.
4. Prep/set/pour one pier at a time.
5. Construct/install one span at a time as piers are built using current bridges as a model.
6. Install tracks & guard rails as spans are completed.
Project 4: Westside water siding track changes
The purpose of this project is to add a switch coming off the inner loop traveling west bound just after the bridge and before connecting to the current mainline. The new switch will allow trains traveling west board to connect to the current water line siding. This also means we will need to install an additional switch on the water line siding that will allow us to then connect the two new switches together with a few straight panels. Once completed this will allow trains traveling east to west to stay off the yard track and travel on the mainline instead.
Based on current projects schedules we are anticipating this project will take place during some months after our last spring run day.
The purpose of this project is to add a switch coming off the inner loop traveling west bound just after the bridge and before connecting to the current mainline. The new switch will allow trains traveling west board to connect to the current water line siding. This also means we will need to install an additional switch on the water line siding that will allow us to then connect the two new switches together with a few straight panels. Once completed this will allow trains traveling east to west to stay off the yard track and travel on the mainline instead.
Based on current projects schedules we are anticipating this project will take place during some months after our last spring run day.
